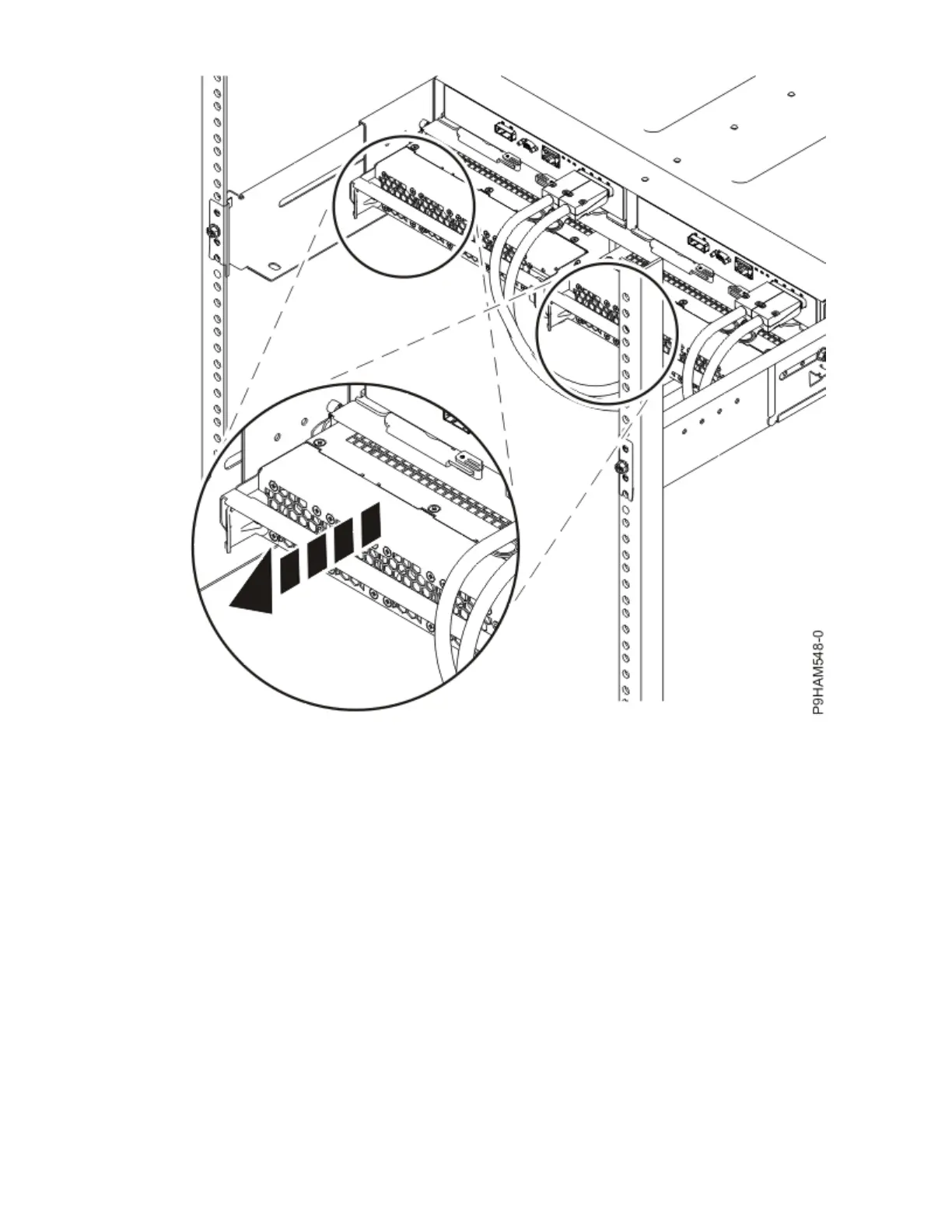

Figure 8. Sliding the power supplies toward the chassis
b. For one power supply at a time, rest your right thumb on the terracotta release latch beside the
unit handle and your ngertips on the handle. In one motion, squeeze the release latch to the right
and swing the handle down into its fully open position.
8
Power Systems: Installing the 5887 disk drive enclosure
