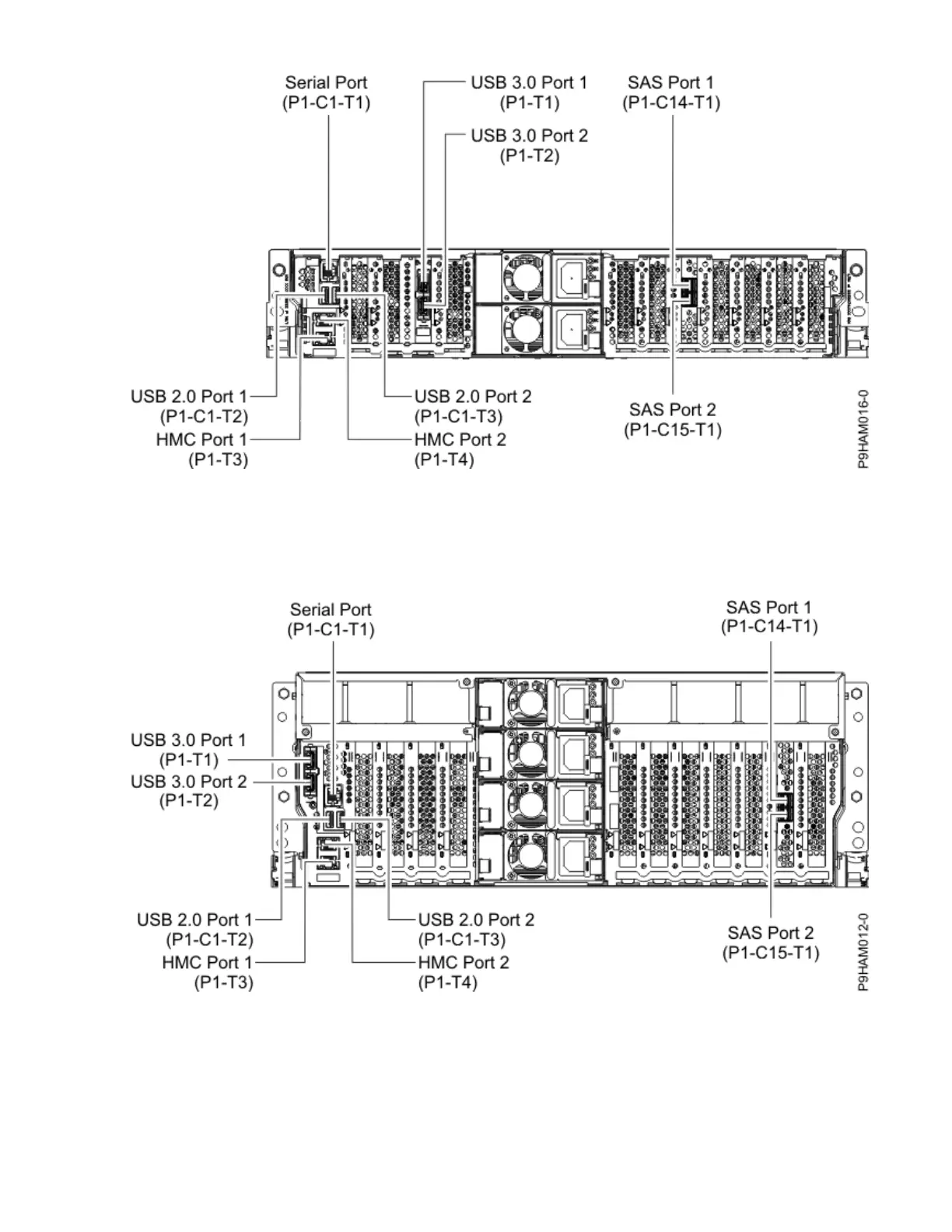

Figure 43. Connector locations for the expanded function 8247-21L, 8247-22L, 8284-21A, and 8284-22A
systems
Connector locations for the 8286-41A system
Learn about connector locations for the 8286-41A rack-mounted and stand-alone models.
The 8286-41A server provides cable connector locations via a SAS port for disk drive enclosures.
Figure 44. Connector locations for the rack-mounted 8286-41A (expanded function) system
Reference information
49
