Model 8231-E2B connector locations
Learn about connector locations on rack-mounted models.
The 8231-E2B server provides cable connector locations for the following enclosures:
• Support for disk drive enclosures, as shown in the following gure, is as follows:
– The server contains a SAS port.

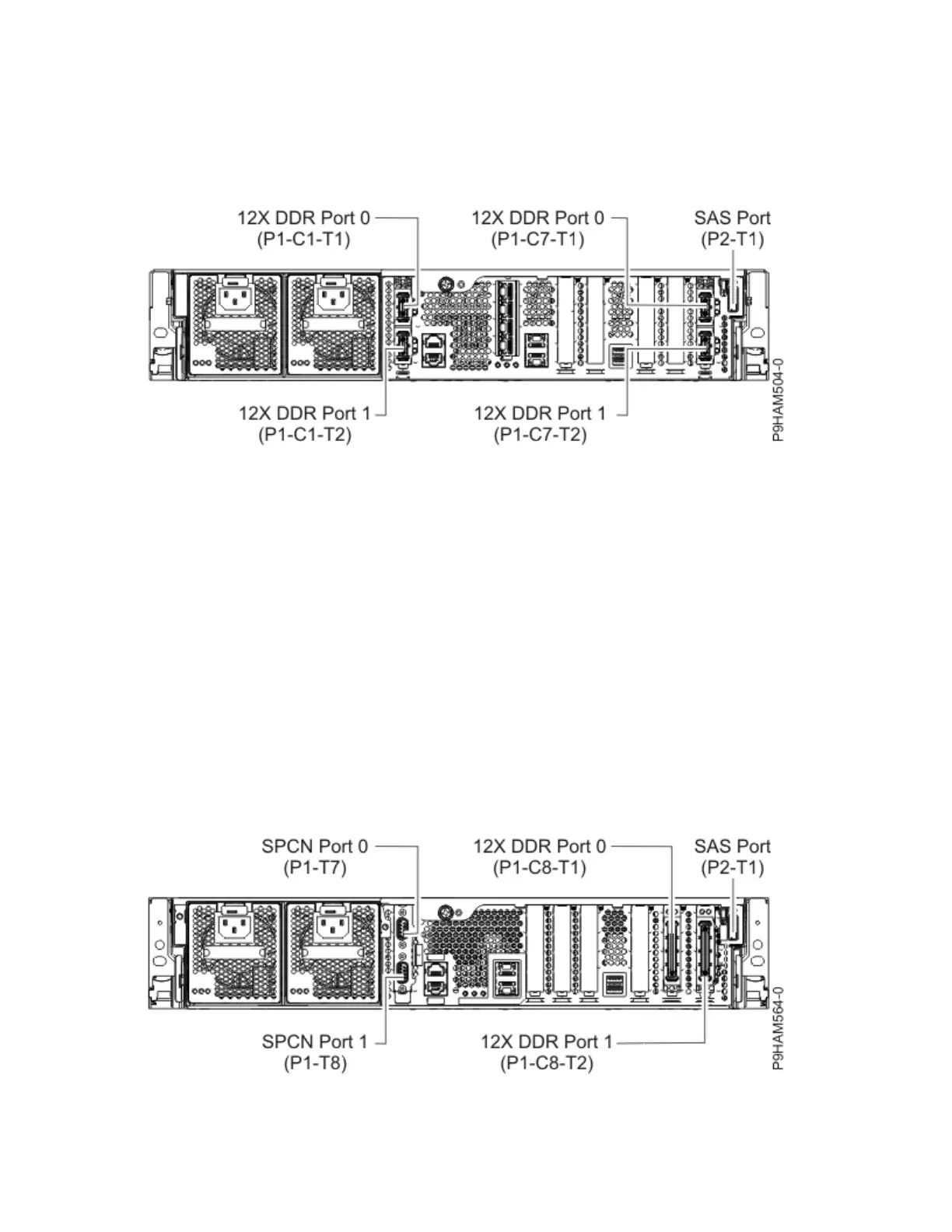

Figure 56. Model 8231-E2B connections for disk drive enclosures
• The 8231-E2B server provides no support for expansion units. The 12X DDR cable ports are for high
speed system-to-system interconnection only.
Model 8231-E2C or 8231-E2D connector locations
Learn about connector locations.
The 8231-E2C or 8231-E2D server provides cable connector locations for the following enclosures:
• Support for expansion units, as shown in the following gure, is as follows:
– The C1 slot must contain the system power control network (SPCN) card, and the C8 slot must
contain the card with two 12X double data rate (DDR) cable ports.
Note: Installing the 12X DDR cable ports at this location causes both the C8 and C6 slot space to be
occupied.
– The server cannot support both 12X DDR cable ports and PCIe cable ports at the same time.
– The server contains a serial-attached SCSI (SAS) port.
• Support for disk drive enclosures, as shown in the following gure, is as follows:
– The server contains a SAS port.
Figure 57. Model 8231-E2C or 8231-E2D connections for expansion units and disk drive enclosures
• Support for PCIe storage enclosures, as shown in the following gure, is as follows:
Reference information
59
