4. One pair of SAS adapters to two ESLL or ESLS storage enclosures through a mode 1 connection.
v For SAS adapter pairs, you must attach the cables to the same port on both adapters.
v Connection by using dual SAS YO12 cables to connect to the ESLL or ESLS storage enclosure.
v Supported on AIX, Linux, and IBM i systems.

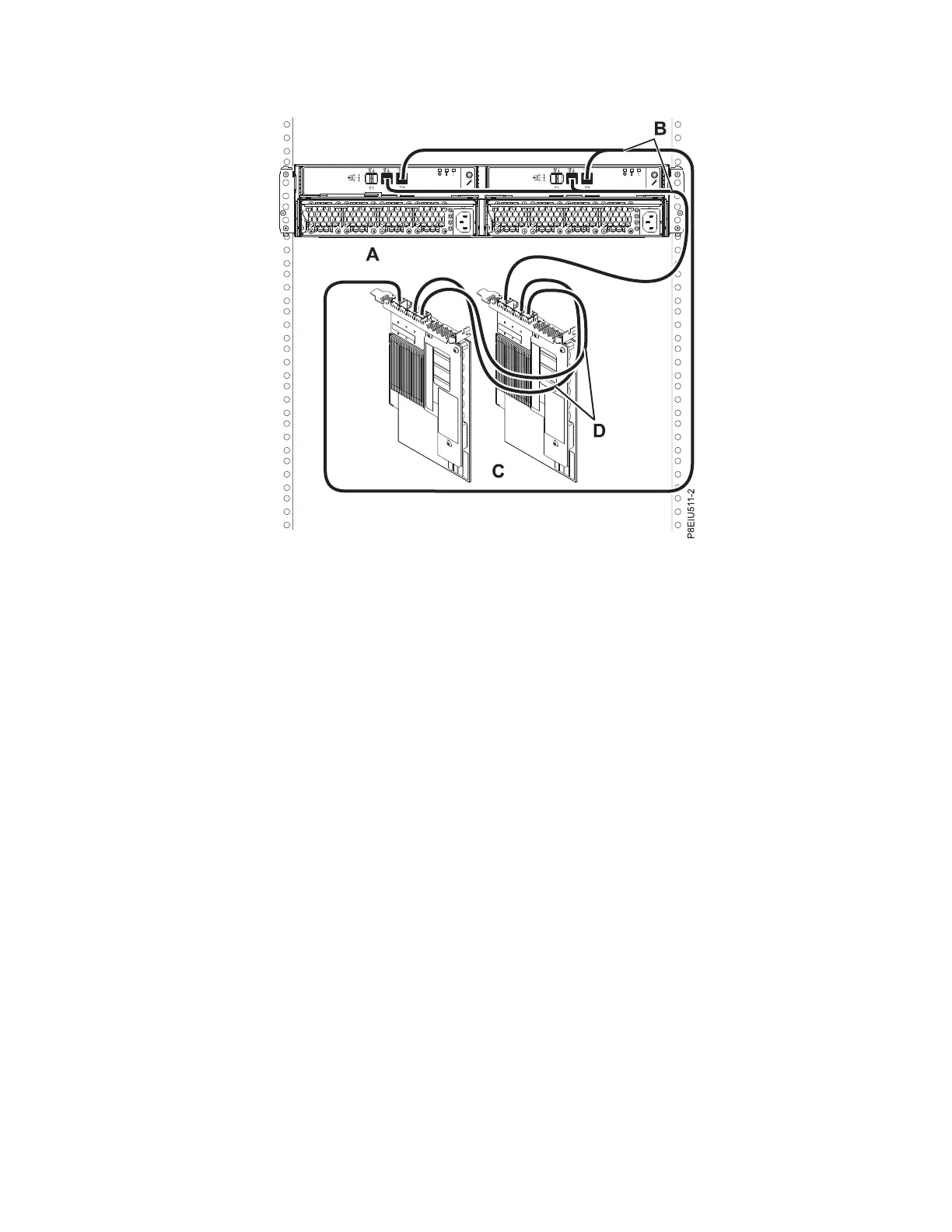

Figure 97. Mode 1 connection of one ESLL or ESLS storage enclosure by using YO12 cables to one pair of SAS
adapters
