6. Replace the top cover of the circuit breaker panel chassis, taking care to feed
the customer's power cables and return power cables through the openings at
the rear corners of the top cover.

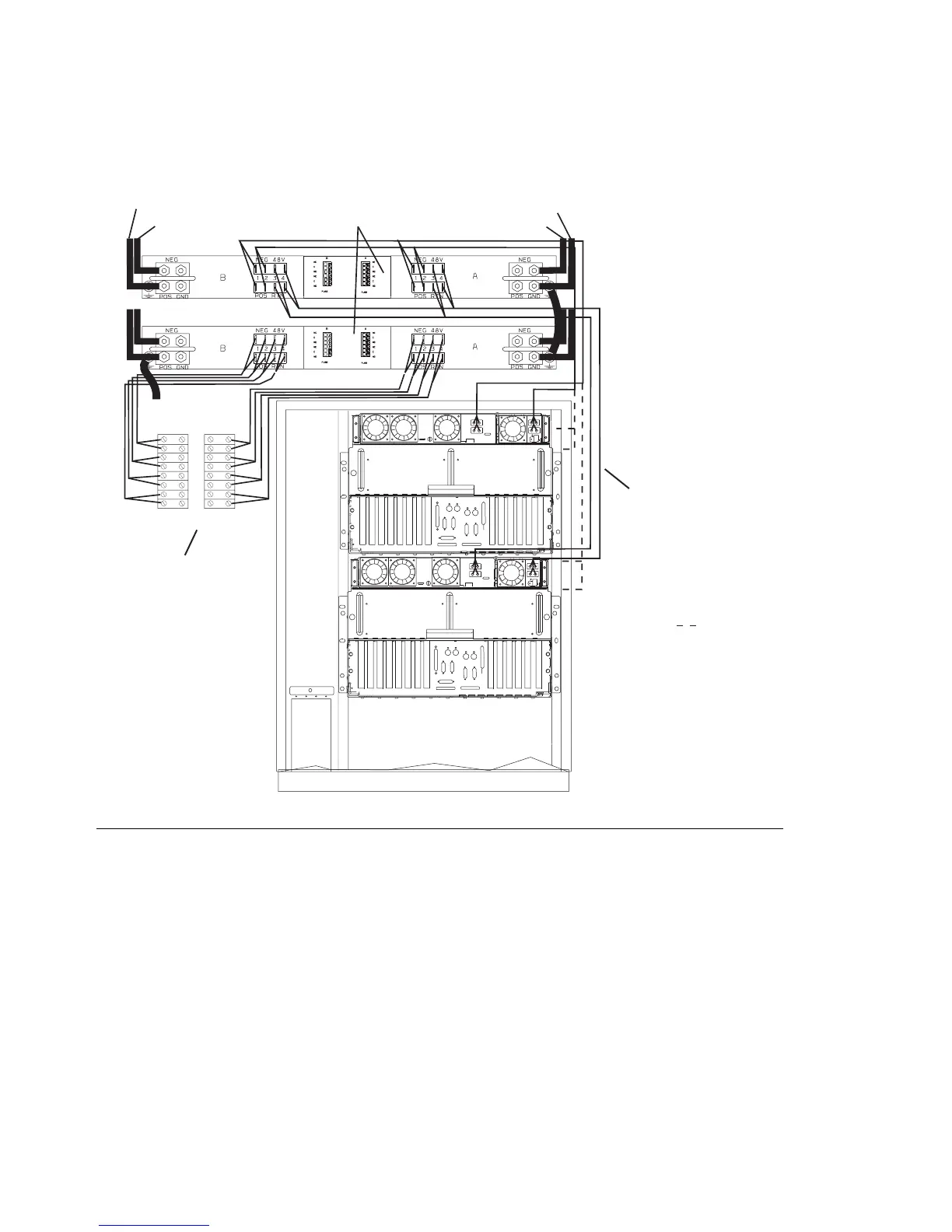

Typical Circuit Breaker Panel Cabling
20/10A
Rear View of
Circuit Breaker Panels
-48 V dc Power
-48 V dc Power
-48 V dc return
-48 V dc return
Terminal Strips
Typical DASD Drawers
Attach To Circuit
Breaker Panels
Via Terminal Strips
Typical IO Drawers
Attach To Circuit
Breaker Panels
Directly
To Frame Ground
15A
Ground Cables
Step 6.3. Checking Customer AC Outlets
If you are installing an AC rack, perform the following checks on the customer's AC
power source.
If you are installing a -48 V DC, rack, the customer is responsible for checking the
integrity and quality of the -48 V DC power sources. When installing a -48 V DC
Model S00 rack, ensure that the customer has checked his -48 V DC power sources,
then skip to “Step 1. Position the Rack” on page 2-3.
2-32 7014 Model S00 Rack Installation and Service Guide
