11. Remove the four mounting screws that attach the PDP chassis to the top of the
rack.
12. Pull the ground bus bar wire out of the back of the power distribution panel.
13. Remove the PDP and all of the attached drawer power cables from the top of the
rack.

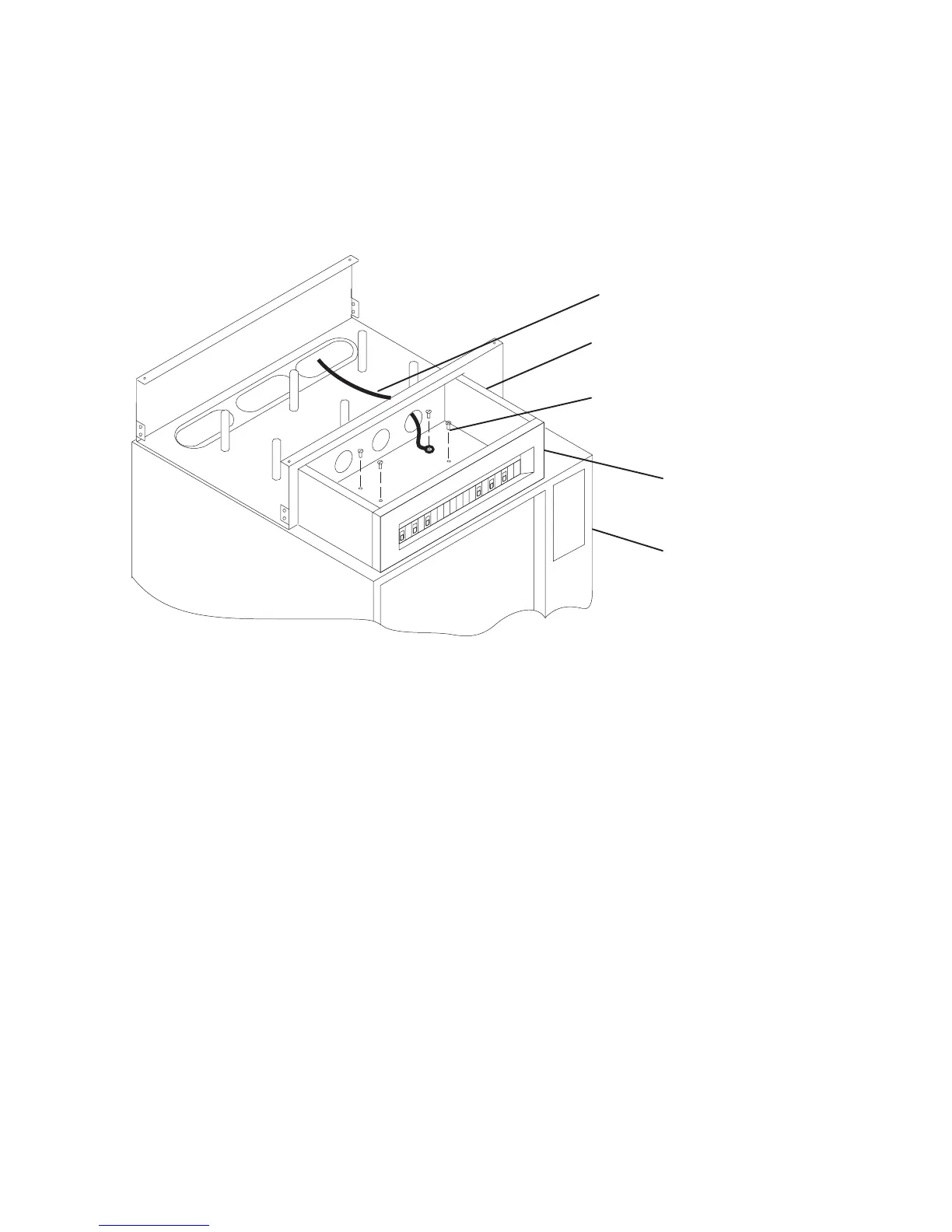

Mounting Screws (4)
Power
Distribution
Panel
Front of
Rack
Power Distribution
Panel Chassis
Ground Wire With
Connector
Power Distribution Panel Replacement
1. If it is not already off, remove the top cover of the power distribution panel.
2. Place the power distribution panel on top of the rack, aligning the mounting holes
in the bottom of the chassis with the mounting holes on the top of the rack.
3. Attach the ground bus bar cable to the power distribution panel the mounting
screw as shown in the figure above.
Note: The ground bus bar cable must be attached to an unpainted surface to
ensure proper grounding of the electrical system.
4. Attach the power distribution panel chassis to the top of the rack with the
remaining mounting screws provided (see figure above).
5. Ensure that the customer's power sources that will be connected to this power
distribution panel are switched off.
Note: It is the customer's responsibility to provide and have a qualified
technician install both -48 V DC power cables and return power cables
4-14 7014 Model S00 Rack Installation and Service Guide
