Chapter 1. Reference Information
System Unit Locations

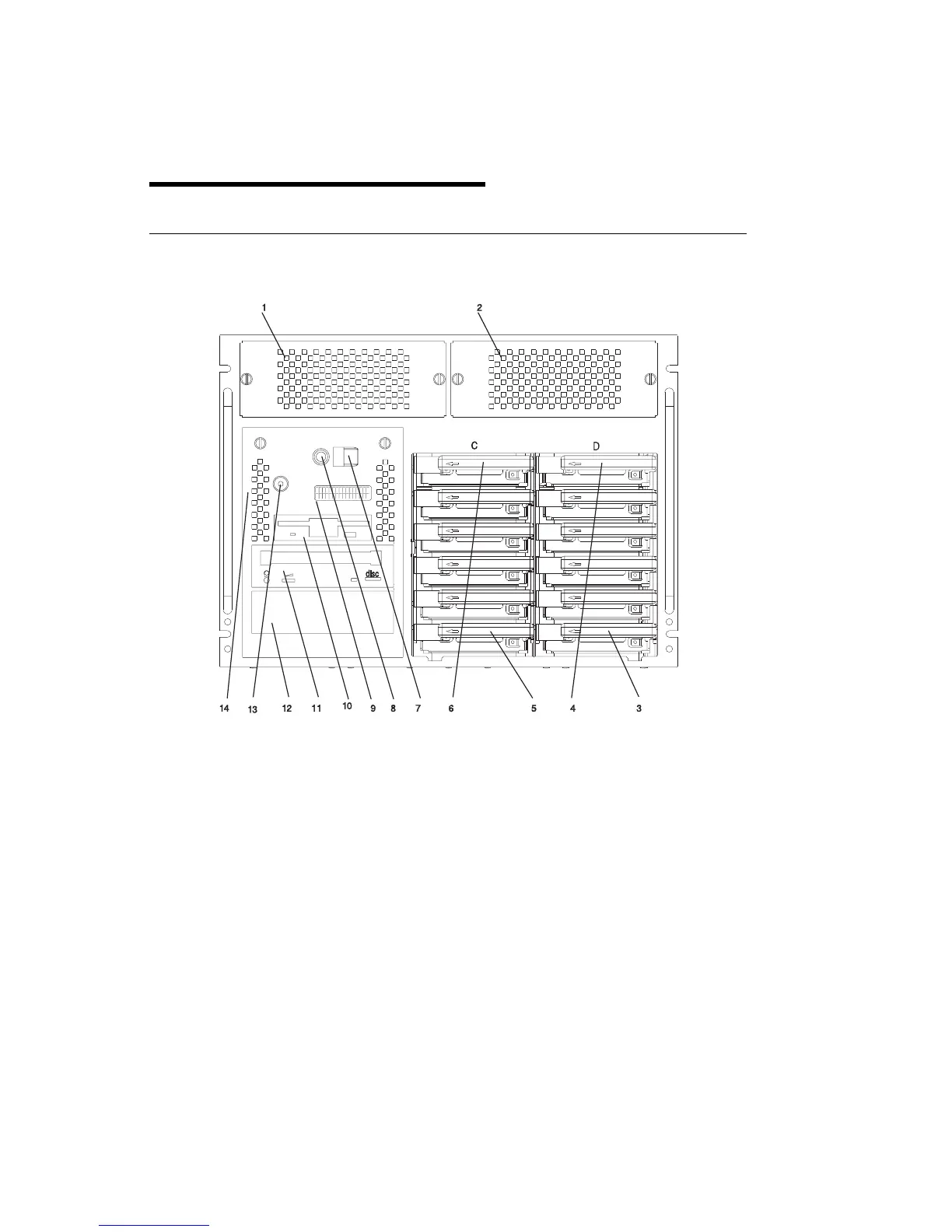

Front View with Covers Off
1 Blower 8 Reset Button
2 Blower 9 Operator Panel Display
3 Hot-Swappable Disk Drive D1 10 Diskette Drive
4 Hot-Swappable Disk Drive D6 11 CD–ROM Drive
5 Hot-Swappable Disk Drive C1 12 Additional Media Bay
6 Hot-Swappable Disk Drive C6 13 Power On LED
7 Power Button 14 Optional SCSI Boot Disk (behind Op Panel
Display and LEDs)
Chapter 1. Reference Information 1-1
