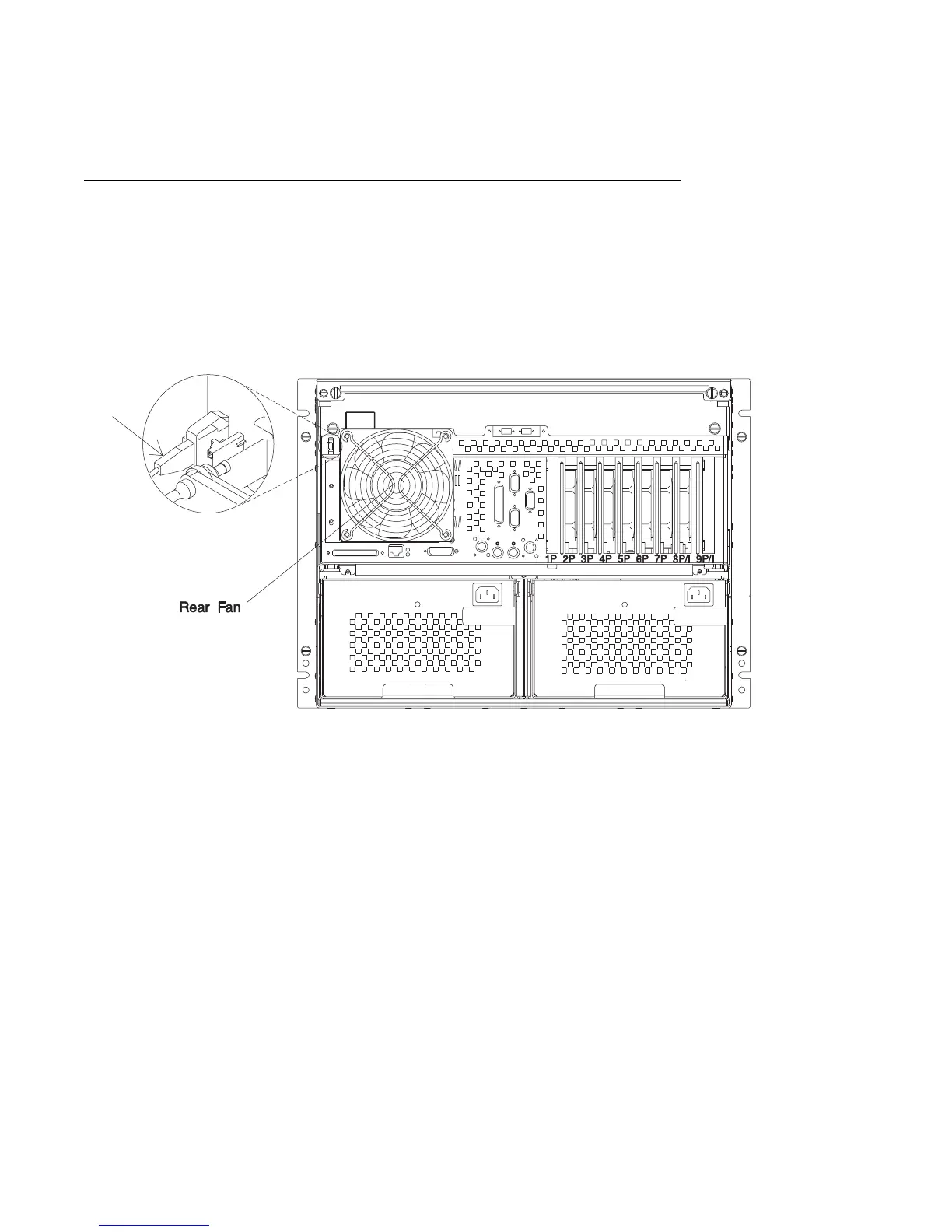

Rear Fan
Removal
1. Open the rear door of the rack unit.
2. Reposition any cables that hinder access to the rear fan.
3. Using a finger nail, depress the tab on the fan plug and pull to remove the fan
cable from the bulkhead fan connector.
Notes:
a. The rubber isolators should remain in the bulkhead.
b. If both top isolators are damaged, the drawer must be placed in the rear
service position, as described in “Rear Service Position” on page 7-23, to
replace them.
c. If any of the rubber isolators are damaged, three of the four are sufficient to
hold the fan in position.
4. Carefully remove the fan from each of the four isolators that hold the fan to the
drawer.
Pull the fan away from the bulkhead.
Use a needle nose pliers to firmly grasp the rubber isolator between the fan
and the bulkhead.
7-22
RS/6000 Enterprise Server Model H50 Installation and Service Guide
