10. Disconnect the top cable that attaches to the backplane for bank D.

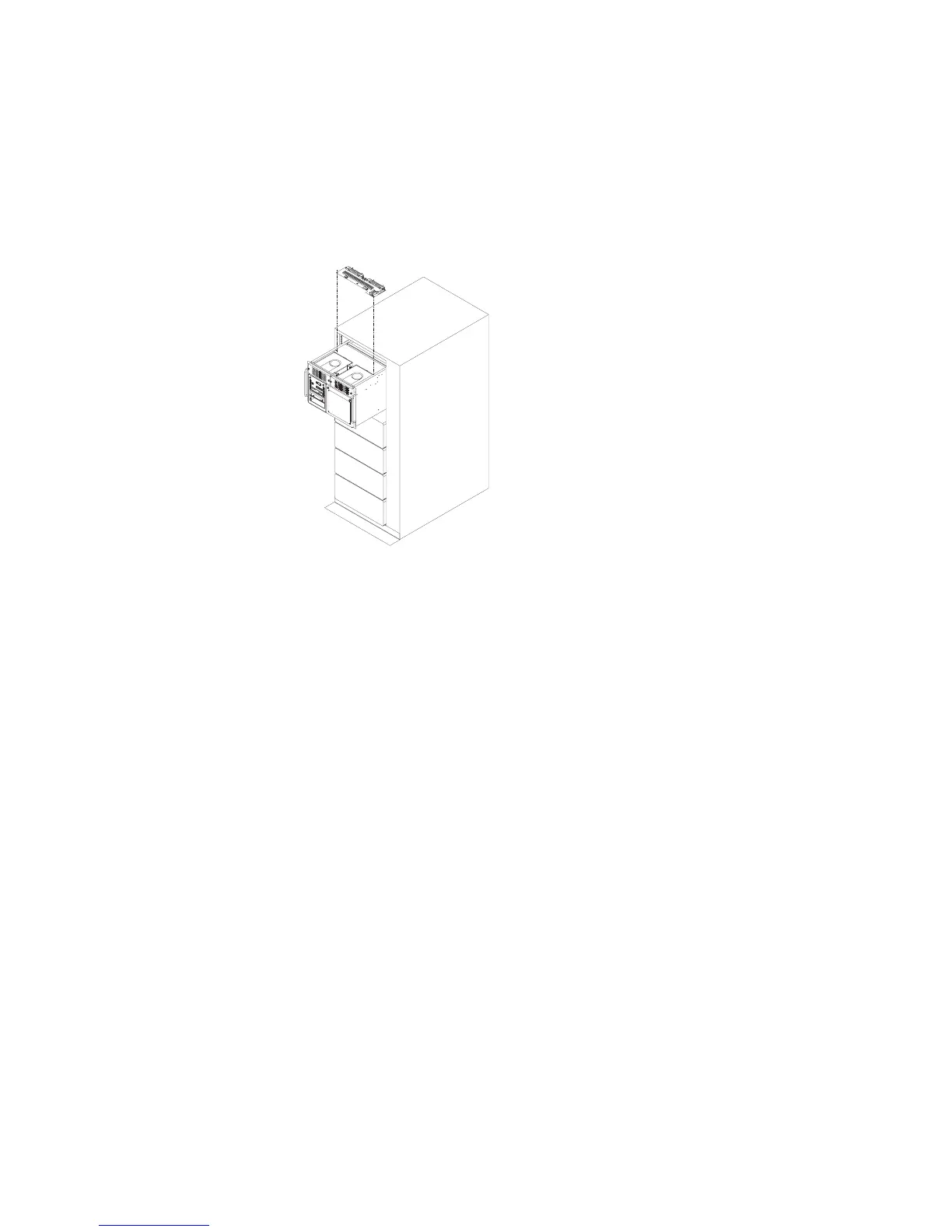

11. Remove the power distribution assembly by lifting the right side up and pulling it
out.
Replacement: Attach the new power distribution assembly to the bracket, and
replace in reverse order.
7-42
RS/6000 Enterprise Server Model H50 Installation and Service Guide
