Operator Panel Control Assembly
Attention: The system ID is stored in the VPD, which is located on connector U2 of
the Operator Control panel assembly. Contact the system administrator if you
replace the Operator Control panel assembly.
Removal
1. Follow the steps described in “Media Devices (CD-ROM Drive, Tape Drive,
Diskette Drive, Non-Hot-Swappable SCSI Disk Drives)” on page 7-46
2. Remove the diskette drive, as described in “Media Devices (CD-ROM Drive,
Tape Drive, Diskette Drive, Non-Hot-Swappable SCSI Disk Drives)” on
page 7-46.
3. Note the locations of the cables that attach to the card.
4. Disconnect all cables from the operator panel control assembly.

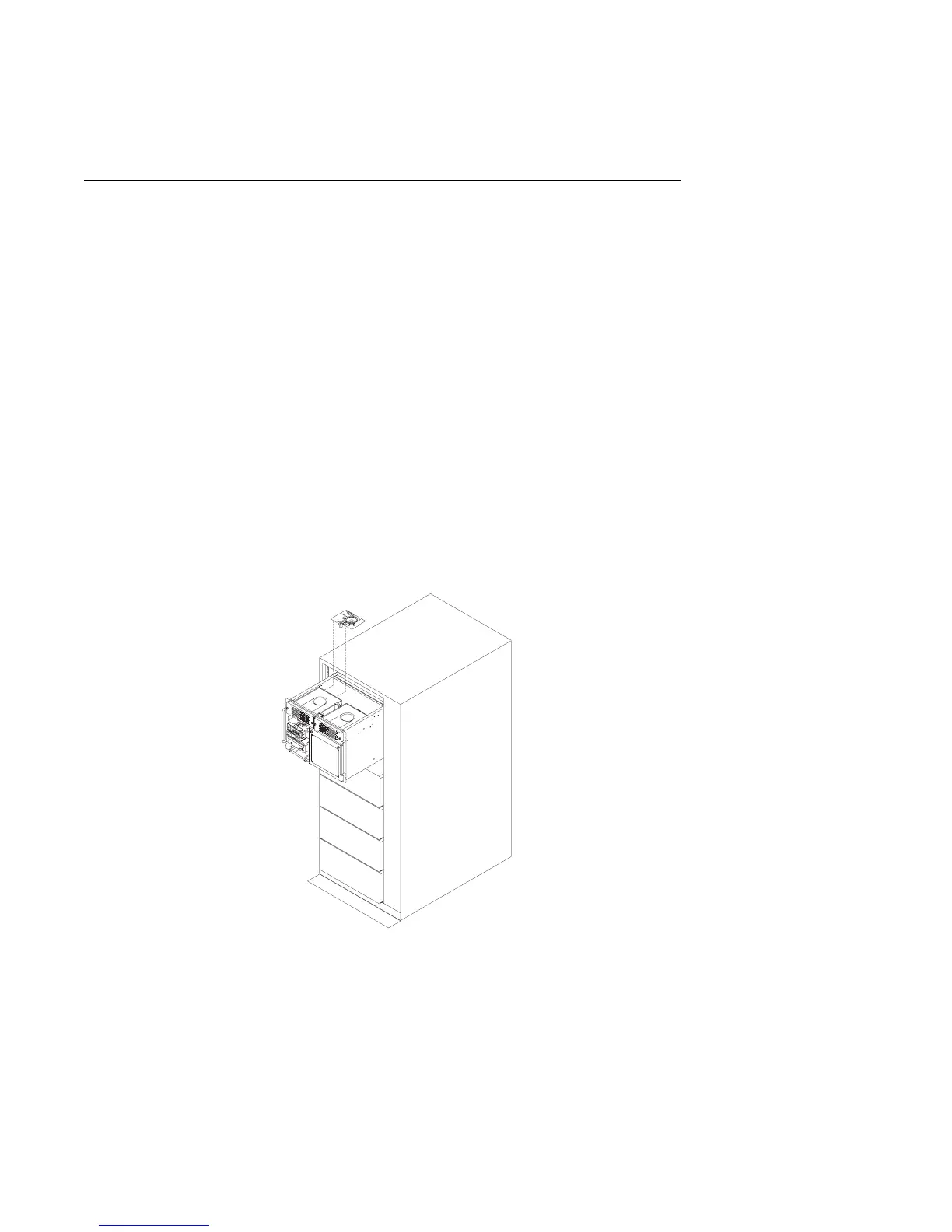

5. Release the assembly by compressing the spring clip at each side of the
assembly.
6. Remove the card by pushing it to the rear and pulling it up.
Replacement: Replace in reverse order.
7-48
RS/6000 Enterprise Server Model H50 Installation and Service Guide
