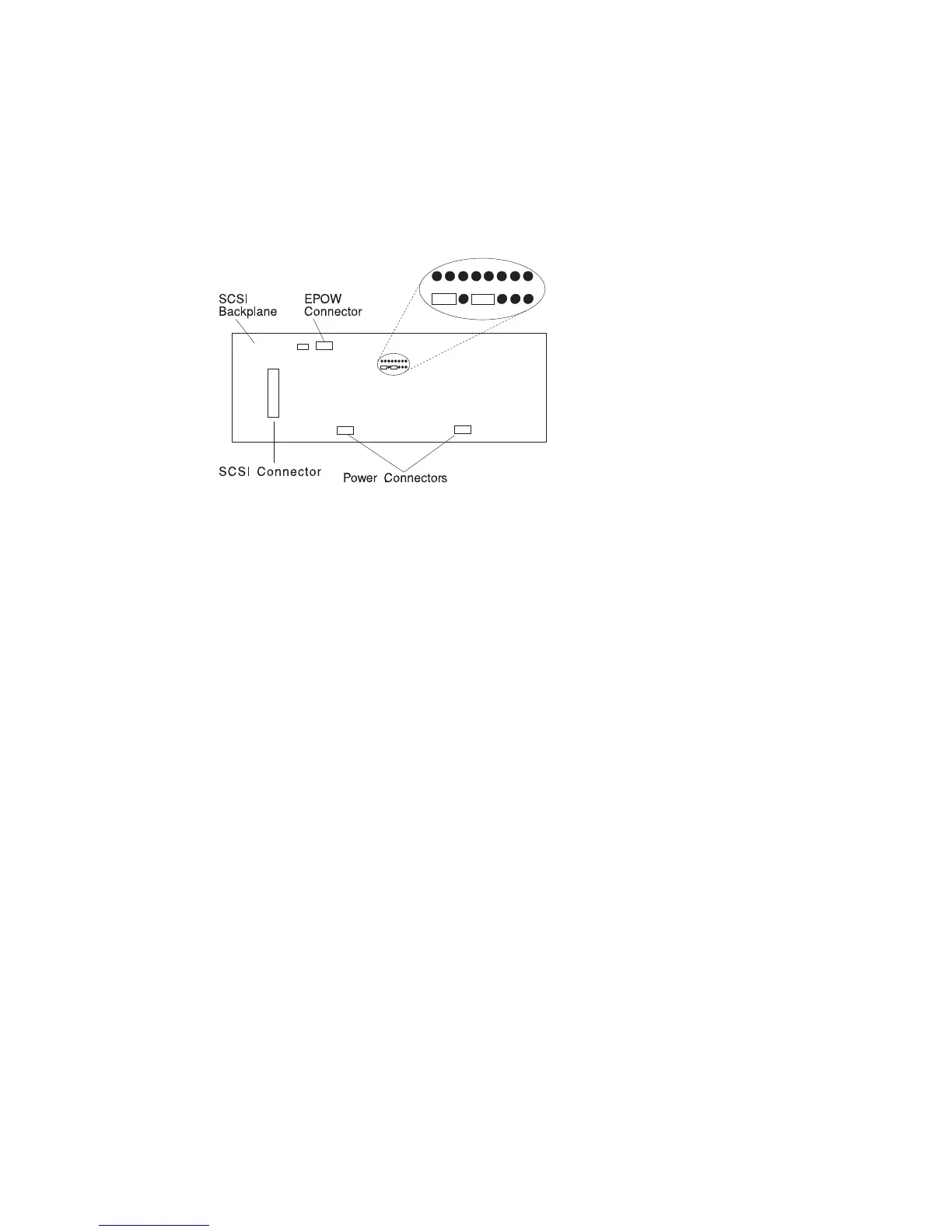

Replacement: If you installed a SCSI backplane, check the jumpers on the new
backplane for proper setting. The jumpers should be set as shown.
Replace in reverse order.
If you installed an SSA backplane, be sure to connect the internal SSA cable
between the backplane and the internal connectors on the external SSA connector.
7-50
RS/6000 Enterprise Server Model H50 Installation and Service Guide
