Table 4. Four System Node to System Control Unit Clock Card Cabling (continued)
Index Number From: (U-Loc) Cable Type Index Number To: (U-Loc)
9 U5: P1-T7 Long Clock Flex
Cable (Left)
10 U3: P1-C8-T4
11 U5: P1-T8 Long Clock Flex
Cable (Right)
12 U3: P1-C9-T3
13 U1: P1-T7 Long Clock Flex
Cable (Left)
14 U3: P1-C8-T1
15 U1: P1-T8 Long Clock Flex
Cable (Right)
16 U3: P1-C9-T2

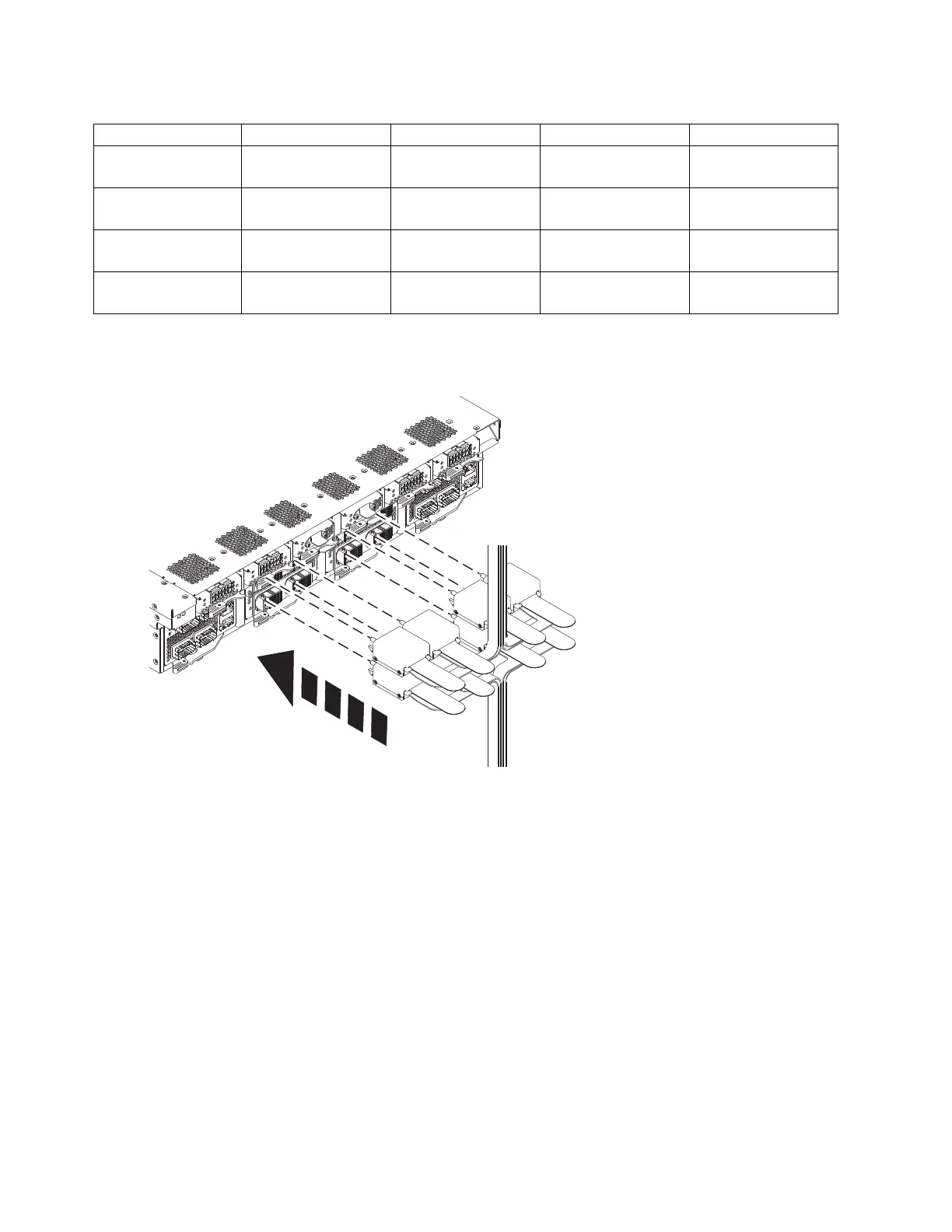

f. Push the cables into the slots on the system control unit. The connectors are keyed and can only
be seated in one way.
g. Push the cables into the slots on the system node. The connectors are keyed and can only be
seated in one way.
