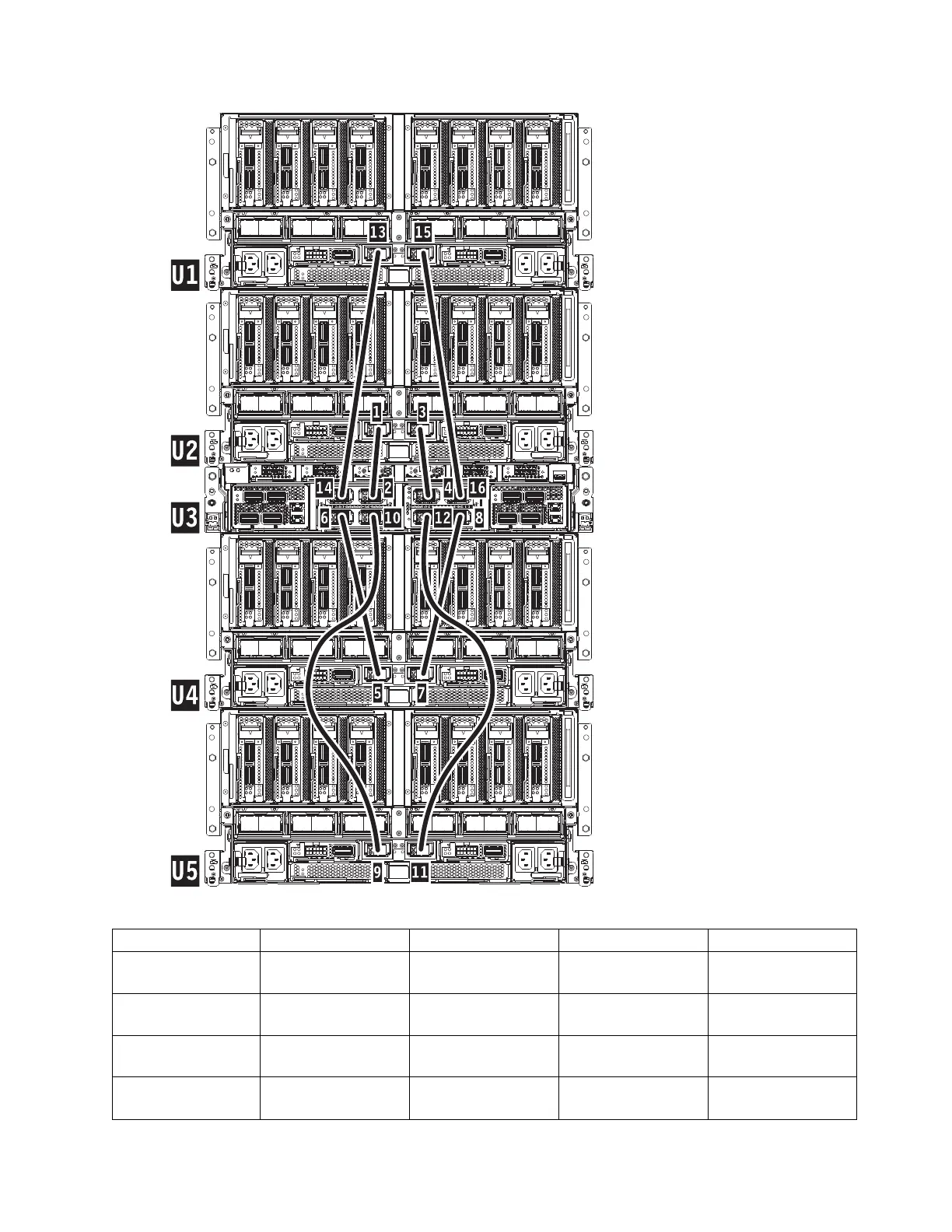

Table 4. Four System Node to System Control Unit Clock Card Cabling
Index Number From: (U-Loc) Cable Type Index Number To: (U-Loc)
1 U2: P1-T7 Short Clock Flex
Cable (Left)
2 U3: P1-C8-T2
3 U2: P1-T8 Short Clock Flex
Cable (Right)
4 U3: P1-C9-T1
5 U4: P1-T7 Long Clock Flex
Cable (Left)
6 U3: P1-C8-T3
7 U4: P1-T8 Long Clock Flex
Cable (Right)
8 U3: P1-C9-T4
