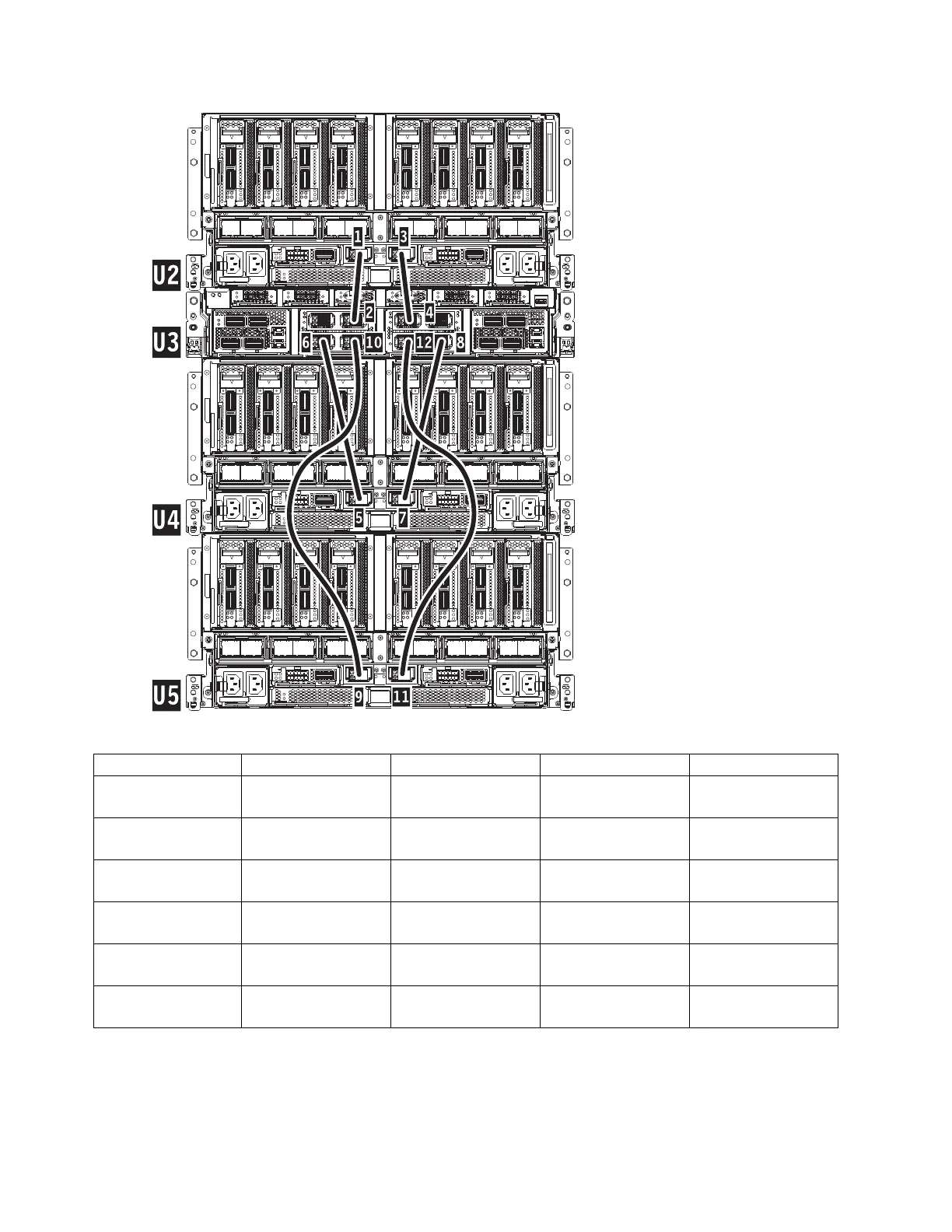

Table 3. Three System Node to System Control Unit Clock Card Cabling
Index Number From: (U-Loc) Cable Type Index Number To: (U-Loc)
1 U2: P1-T7 Short Clock Flex
Cable (Left)
2 U3: P1-C8-T2
3 U2: P1-T8 Short Clock Flex
Cable (Right)
4 U3: P1-C9-T1
5 U4: P1-T7 Long Clock Flex
Cable (Left)
6 U3: P1-C8-T3
7 U4: P1-T8 Long Clock Flex
Cable (Right)
8 U3: P1-C9-T4
9 U5: P1-T7 Long Clock Flex
Cable (Left)
10 U3: P1-C8-T4
11 U5: P1-T8 Long Clock Flex
Cable (Right)
12 U3: P1-C9-T3
e. If you have a four node system configuration, use the diagram and the Four System Node to
System Control Unit Table below to determine point to point cabling for the clock flex cables.
34 Power Systems: SCM
