Loosen Locknut ------=:t:n...,..--..

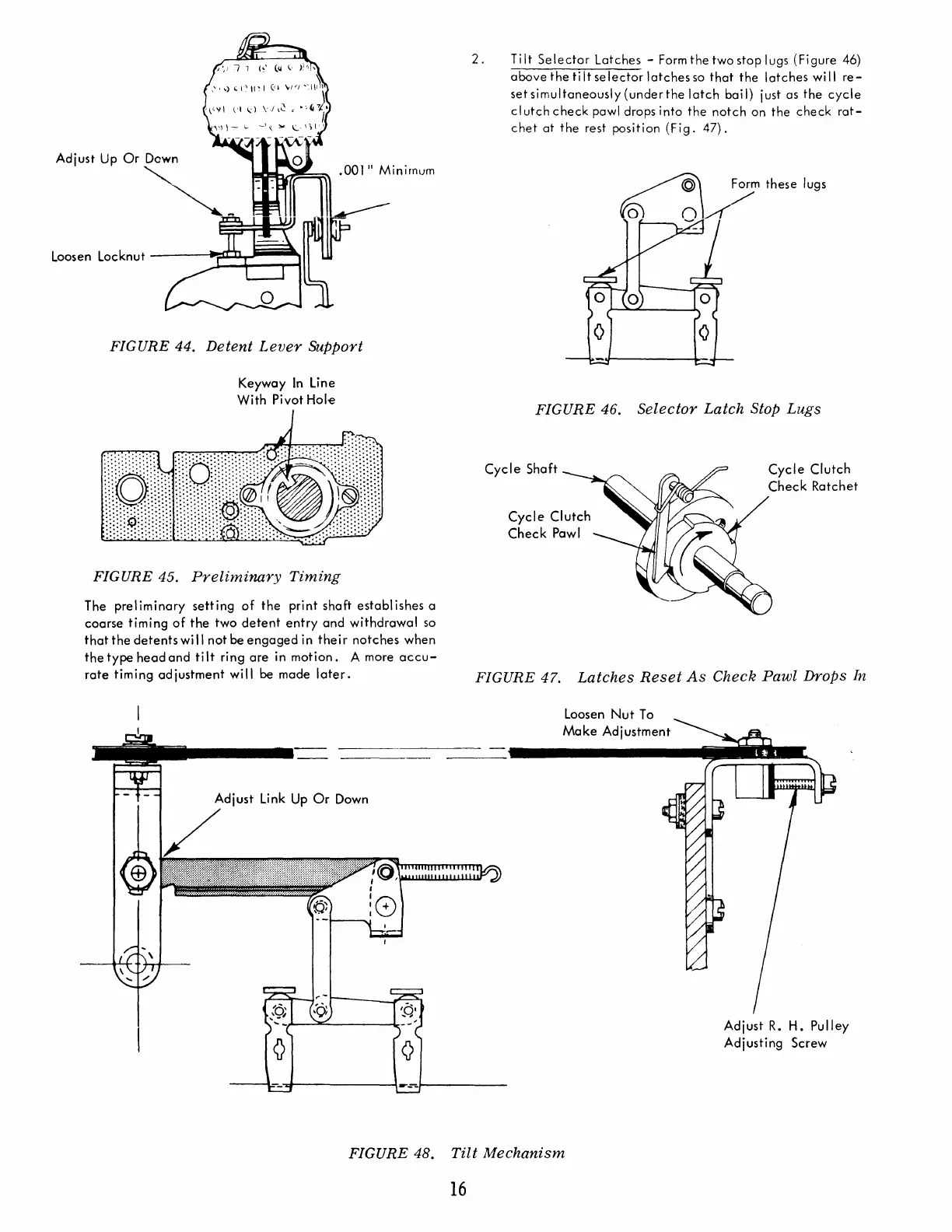

FIGURE 44. Detent Lever Support
Keyway In Line
With Pivot Hole
FIGURE 45. Preliminary Timing
The preliminary setting of the print shaft establishes a
coarse timing of the two detent entry and withdrawal so
that the detents wi II not be engaged in their notches when
the type head and ti It ring are in motion. A more accu-
rate timing adjustment will be made later.
2. Tilt Selector Latches - Formthetwostoplugs (Figure 46)
abovethetiltselectorlatchesso that the latches will re-
set simultaneously (under the latch bai I) just as the cycle
cl utch check pawl drops into the notch on the check rat-
chet at the rest position (Fig. 47).
~ ~ these lugs
~ O\~
FIGURE 46. Selector Latch Stop Lugs
Cycle Shaft
Cycle Clutch
Check Pawl
Cycle Clutch
Check Ratchet
FIGURE 47. Latches Reset As Check Pawl Drops In
Loosen Nut To
Make Adjustment
Adjust R. H. Pulley
Adjusting Screw
FIGURE 48. Tilt Mechanism
16
