5.
Index Link
.005"

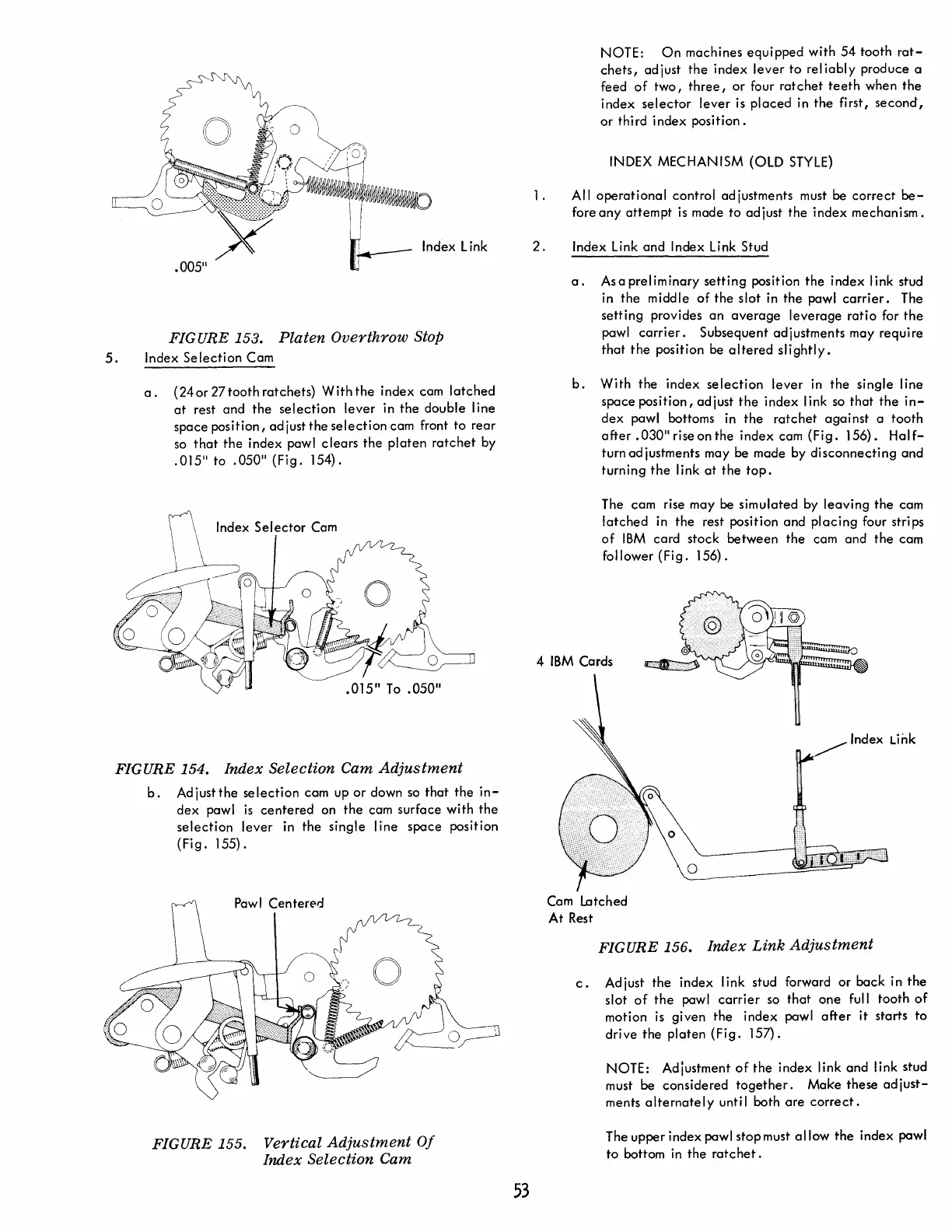

FIGURE
153.
Platen
Overthrow
Stop
Index
Selection
Cam
a.
(240r27toothratchets)
Withthe
index
cam
latched
at
rest
and
the
selection
lever
in
the
double
line
space
position,
adjust
the
selection
cam front
to
rear
so
that
the
index
pawl
clears
the
platen
ratchet
by
.015"
to
.050"
(Fig.
154).
FIGURE
154.
Index Selection Cam
Adjustment
b.
Adjustthe
selection
cam up
or
down so
that
the
in-
dex
pawl
is
centered
on
the
cam
surface
with
the
selection
lever
in
the
single
line
space
position
(Fig.
155).
Paw I CenterE'd
FIGURE
155.
Vertical
Adjustment
OJ
Index
Selection
Cam
53
NOTE:
On
machines
equipped
with
54
tooth
rat-
chets,
adjust
the
index
lever
to
reliably
produce
a
feed
of
two,
three,
or
four
ratchet
teeth
when
the
index
selector
lever
is
placed
in
the
first,
second,
or
thi rd
index
position.
INDEX MECHANISM
(OLD
STYLE)
1 . All
operational
control
ad
justments must be
correct
be-
fore
any
attempt
is made
to
adjust
the
index
mechanism.
2.
Index
Link
and
Index Link Stud
a.
Asa
preliminary
setting
position
the
index
link
stud
in
the
middle
of
the
slot
in
the
pawl
carrier.
The
setting
provides
an
average
leverage
ratio
for
the
pawl
carrier.
Subsequent
adjustments
may
require
that
the
position be
altered
slightly.
b.
With
the
index
selection
lever
in
the
single
line
space
position,
adjust
the
index
link so
that
the
in-
dex
pawl bottoms in
the
ratchet
against
a
tooth
after.
030"
rise
on
the
index
cam
(Fig.
156).
Hal
f-
turn
ad
justments
may
be made by
disconnecting
and
turning
the
link
at
the
top.
The
cam
rise
may
be
simulated
by
leaving
the
cam
latched
in
the
rest position
and
placing
four strips
of
IBM
card
stock
between
the
cam
and
the
cam
follower
(Fig.
156).
4
IBM
Cards
Cam Latched
At
Rest
FIGURE
156.
Index
Link
Adjustment
c.
Adjust
the
index
link stud forward
or
back
in
the
slot
of
the
pawl
carrier
so
that
one
full
tooth
of
motion
is
given
the
index
pawl
after
it
starts
to
drive
the
platen
(Fig.
157).
NOTE:
Adjustment
of
the
index
link
and
link
stud
must be
considered
together.
Make
these
ad
just-
ments
alternately
until both
are
correct.
The
upper
index
pawl
stop
must
allow
the
index
pawl
to
bottom in
the
ratchet.
