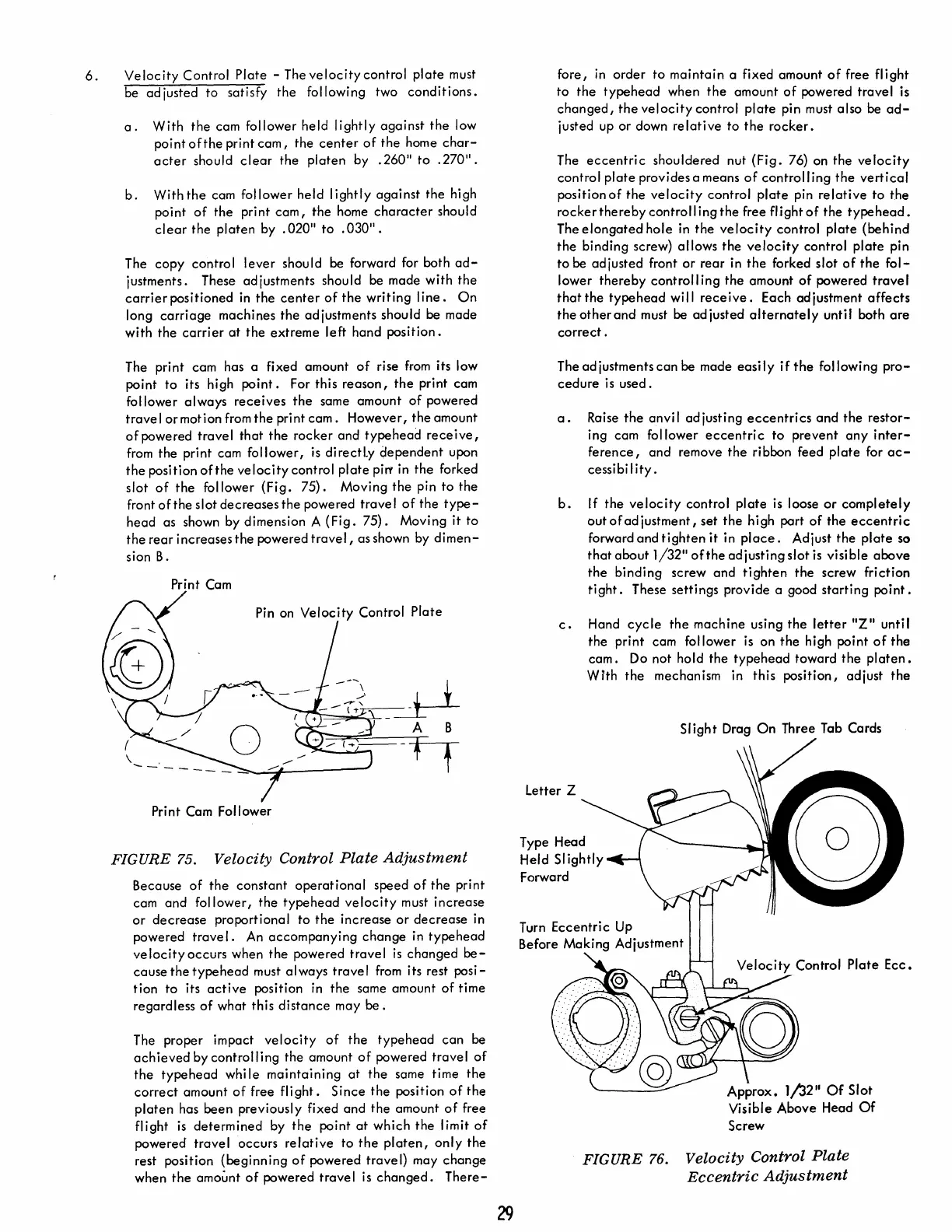

6.
Velocity
Control
Plate
- The
velocity
control
plate
must
be
adjusted
to
satisfy
the
following two
conditions.
a.
With
the
cam follower held
lightly
against
the
low
point
of
the
print
cam,
the
center
of
the
home
char-
acter
should
clear
the
platen
by
.260"
to
.270".
b.
With
the
cam follower
held
I
ightly
against
the
high
point
of
the
print
cam,
the
home
character
should
clear
the
platen
by
.020"
to
.030".
The
copy
control
lever
should
be
forward for both
ad-
justments. These
ad
justments should be made
with
the
carrier
positioned
in
the
center
of
the
writing
line.
On
long
carriage
machines
the
adjustments should
be
made
with
the
carrier
at
the
extreme
left
hand
position.
The print cam has a fixed amount
of
rise
from
its low
point
to
its high
point.
For this
reason,
the
print cam
follower
always
receives
the
same amount
of
powered
travel
ormotion
from
the
print
cam.
However,
the
amount
of
powered
travel
that
the
rocker
and
type
head
receive,
from
the
print cam
follower,
is directl.y
dependent
upon
the
position
ofthe
velocity
control
plate
pirv
in
the
forked
slot
of
the
follower
(Fig.
75).
Moving
the
pin
to
the
front
of
the
slot
decreases
the
po we red
trave
I
of
the
type-
head
as shown by dimension A
(Fig.
75).
Moving it
to
the
rear
increases
the
powered
travel,
as shown by
dimen-
sion
B.
Print Cam
Print Cam
Follower
FIGURE
75.
Velocity
Control
Plate
Adjustment
Because
of
the
constant
operational
speed
of
the
print
cam
and
follower,
the
typehead
velocity
must
increase
or
decrease
proportional
to
the
increase
or
decrease
in
powered
travel.
An
accompanying
change
in
typehead
velocity
occurs
when
the
powered
travel
is
changed
be-
cause
the
type
head
must
always
travel
from
its rest
posi-
tion
to
its
active
position
in
the
same amount
of
time
regardless
of
what
this
distance
may be.
The proper impact
velocity
of
the
typehead
can
be
achieved
by
controlling
the
amount
of
powered
travel
of
the
type
head
whi Ie
maintaining
at
the
same time
the
correct
amount
of
free
flight.
Since
the
position
of
the
platen
has
been
previously fixed and
the
amount
of
free
flight
is
determined
by
the
point
at
which
the
limit
of
powered
travel
occurs
relative
to
the
platen,
only
the
rest position
(beginning
of
powered
travel)
may
change
when
the
amount
of
powered
travel
is
changed.
There-
29
fore,
in
order
to
maintain
a fixed amount
of
free
flight
to
the
typehead
when
the
amount
of
powered
travel
is
changed,
the
velocity
control
plate
pin must also be
ad-
justed up
or
down
relative
to
the
rocker.
The
eccentric
shouldered
nut
(Fig.
76) on
the
velocity
control
plate
provides a means
of
controlling
the
vertical
position
of
the
velocity
control
plate
pin
relative
to
the
rockerthereby
controlling
the
free flight
of
the
typehead.
The
elongated
hole
in
the
velocity
control
plate
(behind
the
binding screw)
allows
the
velocity
control
plate
pin
to
be
adjusted
front
or
rear
in
the
forked
slot
of
the
fol-
lower
thereby
controll
ing
the
amount
of
powered
travel
that
the
type
head
wi
II
receive.
Each adjustment
affects
theotherand
must be
adjusted
alternately
until both
are
correct
.
The adjustments
can
be
made easi Iy
if
the
following
pro-
cedure
is
used.
a.
Raise
the
anvi
I
ad
justing
eccentrics
and
the
restor-
ing cam follower
eccentric
to
prevent
any
inter-
ference,
and
remove
the
ribbon feed
plate
for
ac-
cessibility.
b.
If
the
velocity
control
plate
is loose
or
completely
outofadjustment,
set
the
high part
of
the
eccentric
forward
and
tighten
it
in
place.
Adjust
the
plate
so
that
about
1/32"
ofthe
adjusting
slot
is
visible
above
the
binding
screw
and
tighten
the
screw
friction
tight.
These settings provide a good
starting
point.
c.
Hand
cycle
the
machine
using
the
letter
liZ
II
until
the
print
cam follower
is
on
the
high point
of
the
cam.
Do not hold
the
type
head
toward
the
platen.
With
the
mechanism in
this
position,
adjust
the
Type Head
Held
Slightly
Forward
Slight
Drag
On
Three Tab Cards
Approx.
1/.32"
Of
Slot
Visible
Above
Head
Of
Screw
FIGURE
76.
Velocity
Control
Plate
Eccentric
Adjustment
