IBM ServeRAID-8k

4. Locate the 3-pin jumper at JP9 on the system board at the back right corner
from the front of the server (see Figure 6).
Note: The JP9 location is not labeled on the system board.

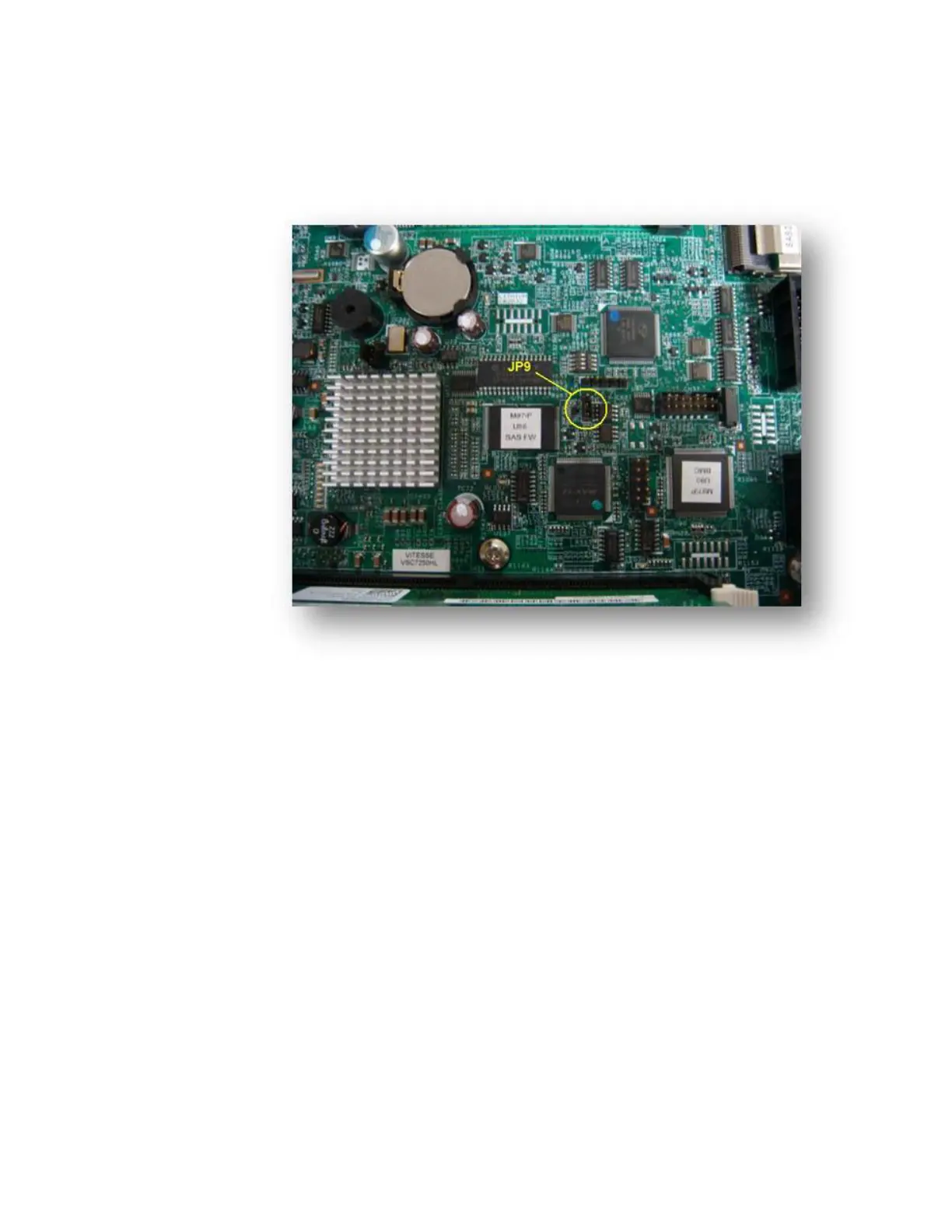

Figure 6. ServeRAID-8k and ServeRAID-8k-l zero-mode flash jumper (JP9) (System x3500)
Chapter 1. ServeRAID-8 series best practices and maintenance information 21
