IBM System x3250 M5 User Manual

IBM System x3250 M5 5

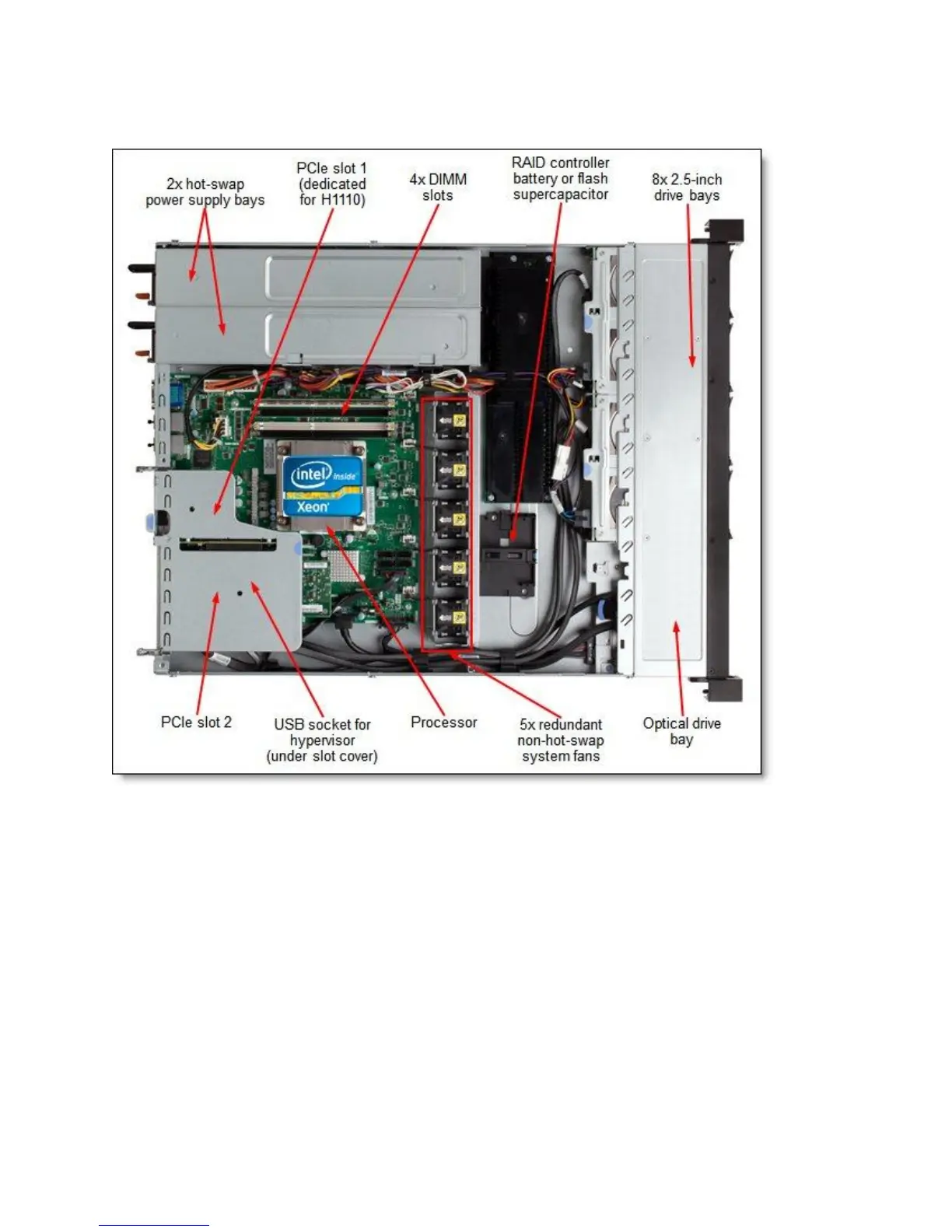

The following figure shows the locations of key components inside the server.
Figure 4. Inside view of the IBM System x3250 M5

IBM System x3250 M5 Specifications

General

Form Factor	1U rack
Memory Slots	4 DIMM slots
Processor	Intel Xeon E3-1200 v3 series
Memory	Up to 32 GB UDIMM
Storage	Up to 4 x 3.5" or 8 x 2.5"
Power Supply	350W
Network Interface	Dual-port Gigabit Ethernet
Storage Bays	4 x 3.5" or 8 x 2.5"
RAID Support	RAID 0, 1, 10, 5
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 3.0 x8
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
