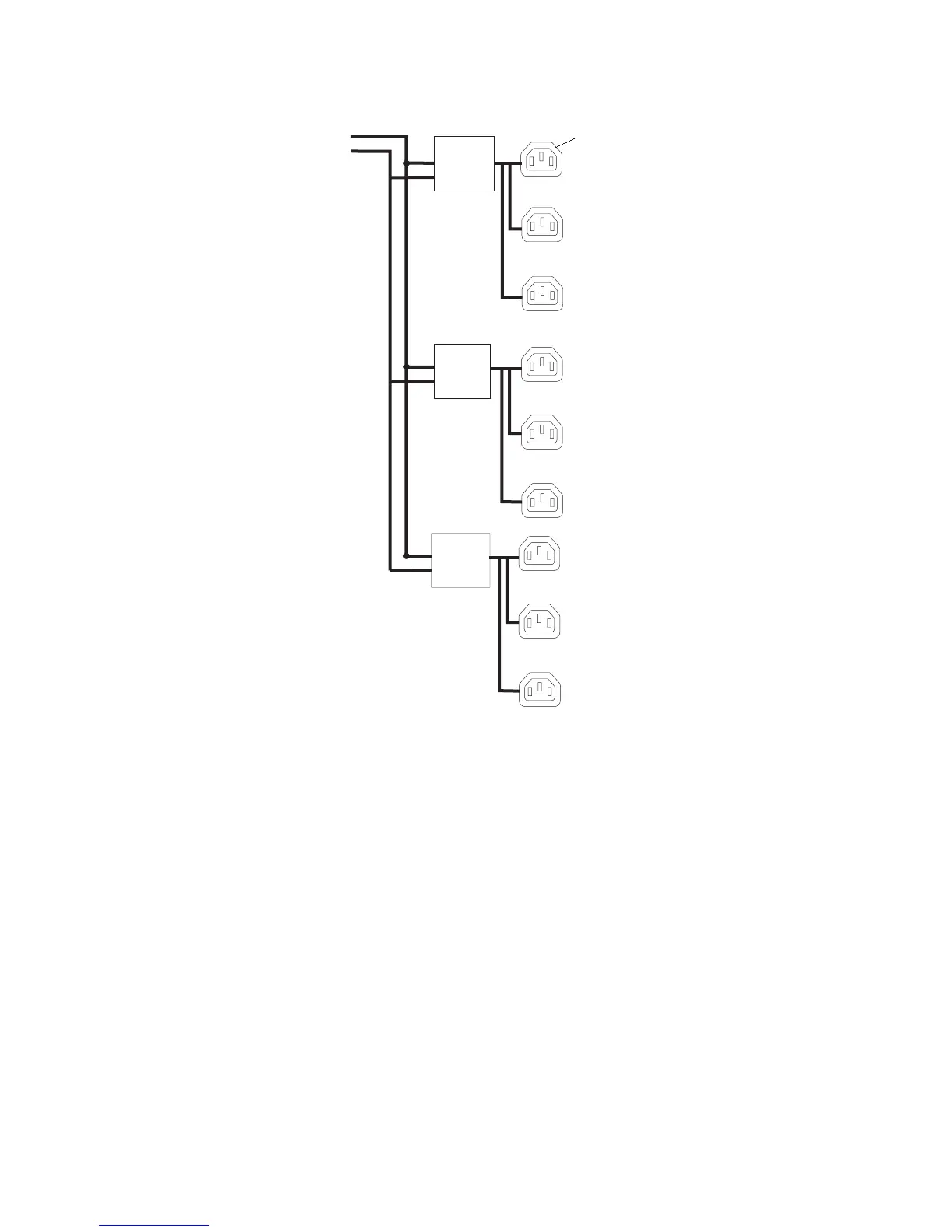

The following illustration shows the type 7 single phase power distribution bus.
1a
2a
5
R1
R2
R3
R4
R5
R6
3a
R7
R8
R9
4
1a Circuit Breaker 1 (15 Amp) 4 AC Power Input
2a Circuit Breaker 2 (15 Amp) 5 AC Outlets (quantity 9)
3a Circuit Breaker 3 (15 Amp)
Note: The maximum total amperes is 24 amps.
