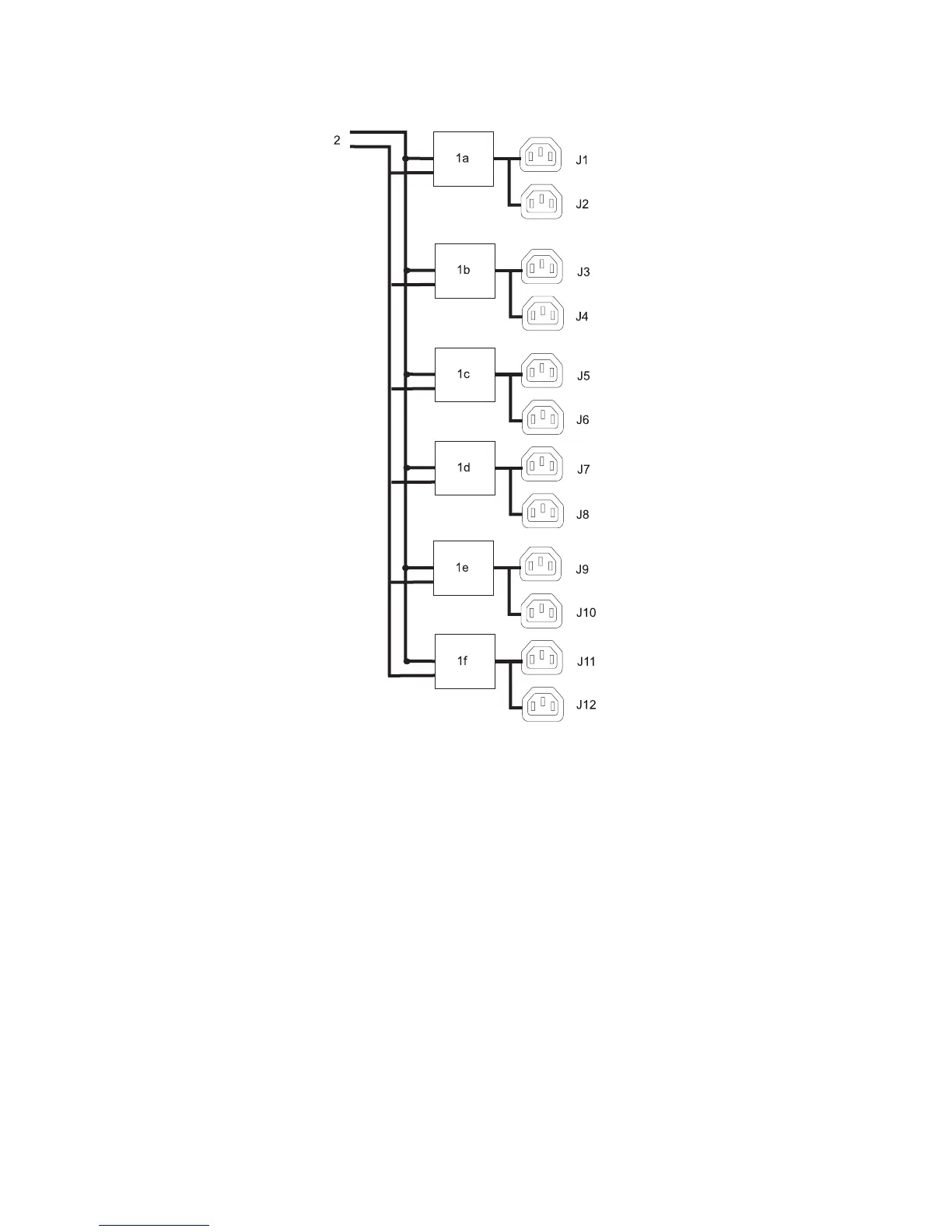

The following illustration shows the 9188/7188 power distribution bus.
1a Circuit Breaker 1 (20 Amp) 1f Circuit Breaker 6 (20 Amp)
1b Circuit Breaker 2 (20 Amp) 2 AC Power Input
1c Circuit Breaker 3 (20 Amp) J1–J12 AC Outlets
1d Circuit Breaker 4 (20 Amp)
1e Circuit Breaker 5 (20 Amp)
