6. Press the metal tabs on each side of the SO-DIMM
away from the card. The card should raise slightly as
the tabs are pulled away from it.
7. Remove the card by holding it at a 15 to 20 degree
angle and pulling it firmly away from the SO-DIMM
socket.
8. Replace the SO-DIMM door.
9. Reattach all cables and other devices, including the
AC adapter.
10. Power-on the computer. The computer will display
error code 164.
To insert a SO-DIMM card, follow these steps:
1. Power-off the computer.
2. Remove the battery.
3. Disconnect all cables and other devices, including the
AC adapter.

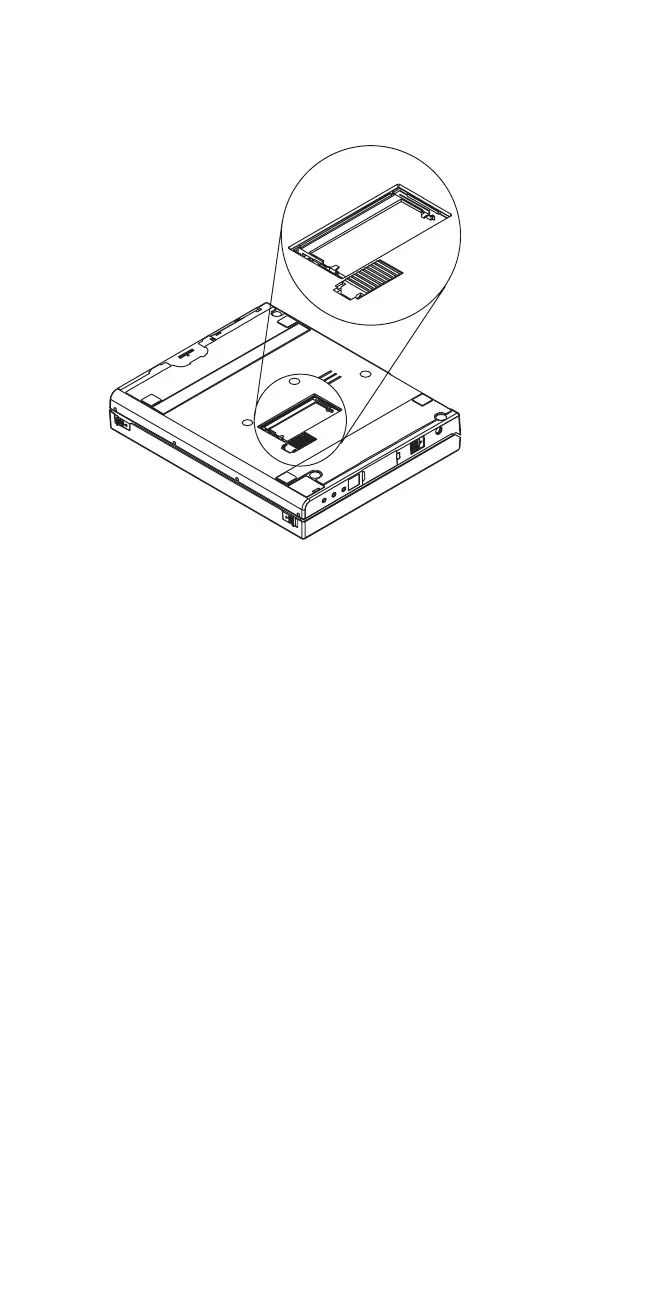

4. Close the computer and turn it upside down.
5. Remove the SO-DIMM door.
6. Locate the notch on the SO-DIMM.
Warning: Do not insert the SO-DIMM too far. You might
damage the SO-DIMM or SO-DIMM socket.
7. Position the card at a 15 to 20 degree angle to the
SO-DIMM socket with the notch facing to the right
when you are looking into the socket, and push it into
the socket firmly.
8. The card is fully inserted when the gold connectors
are almost completely concealed by the SO-DIMM
socket and only the top of each connector is visible.
ThinkPad 701C/701CS (2630)
179
