1080 Keyboard Unit
Battery Pack (1020)

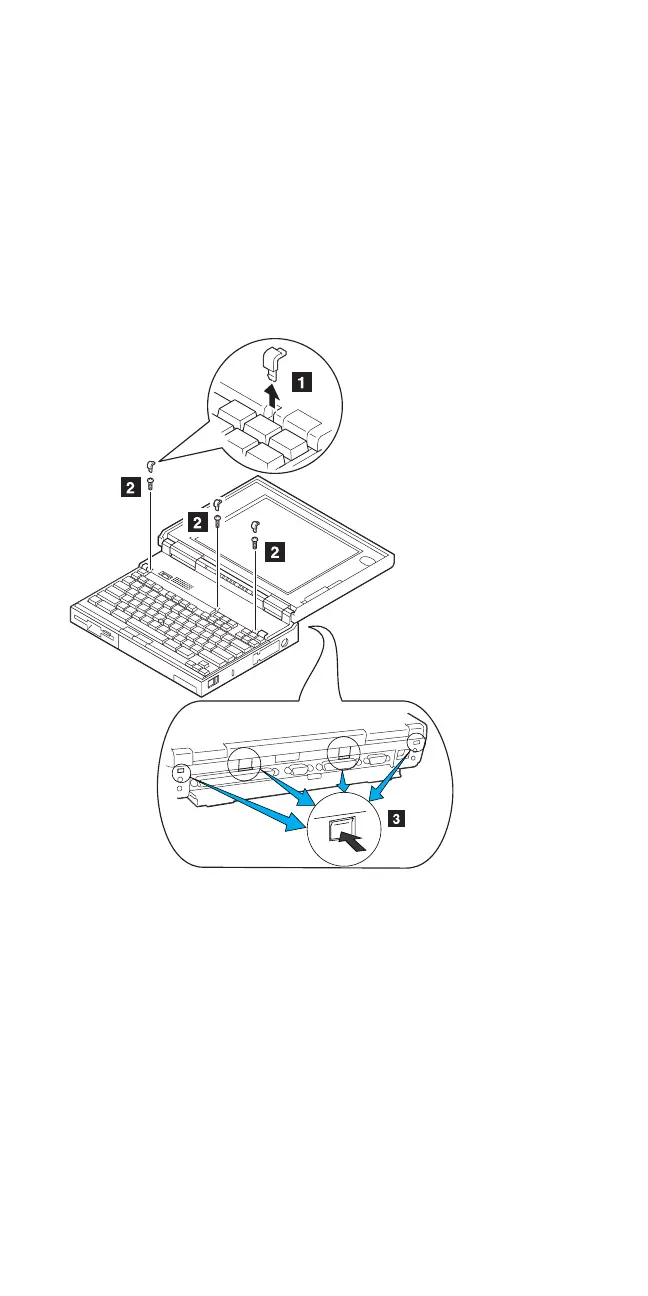

Loosen the three screws ▌2▐, and push ▌3▐ to release the
four top cover latches at the rear side of the system unit.
When removing the screw covers ▌1▐, use a small
screwdriver.
ThinkPad 755CE, 755CSE, 755CV, 755CX (9545) 435
