1170 PCMCIA Slot Assembly
Battery Pack (1020)
Diskette Drive (1030)
Hard Disk Drive (1040)
Keyboard Unit (1080)
Status Indicator (1090)
Standby Battery and Front IR (1100)
Backup Battery (1110)
Logic Assembly (1115)
Shield Assembly (1120)
DC/DC Card (1130)
DSP Card (1140)
Interposer Card and Rear IR (1150)
Processor Card (1180)
System Board Assembly (1160)
Notes:

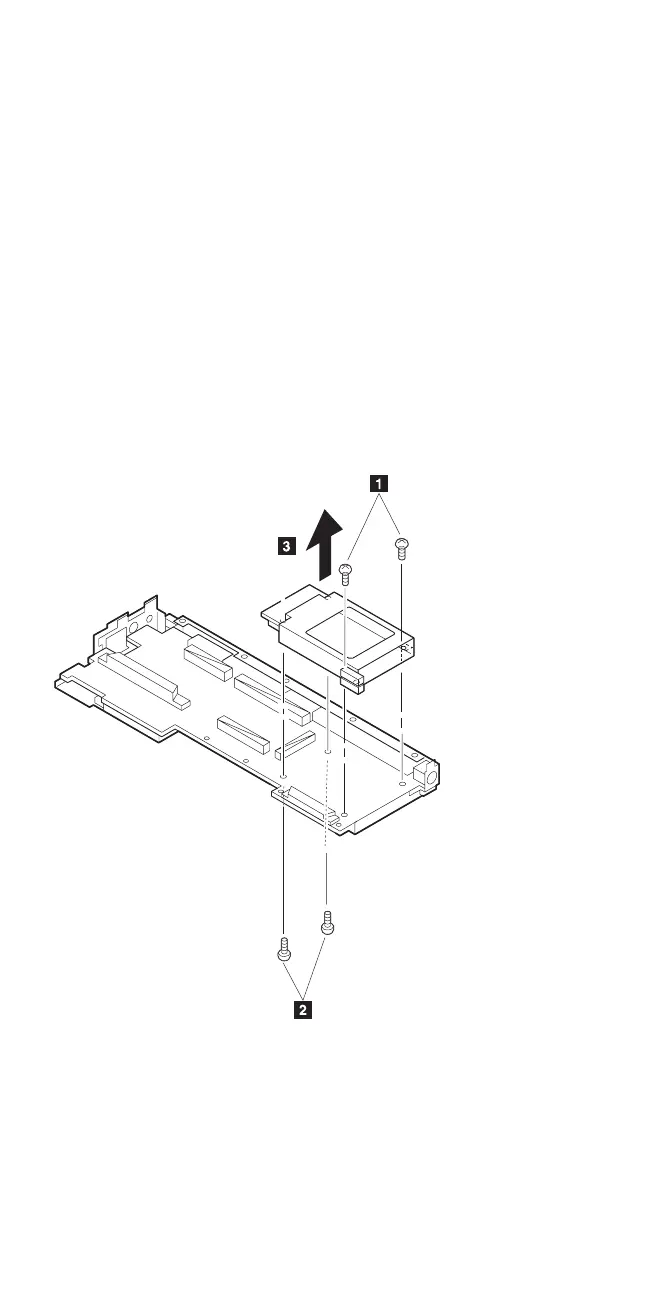

1. When handling the PCMCIA slot assembly, be careful
not to disassemble any part of it. The slot assembly
is not solidly fixed when it is removed from the
system board or the FRU.
In step ▌3▐, gently pull up the bottom of the center
area of the connector board edge with your fingers.
2. The screw stand at each corner of the PCMCIA slot is
ThinkPad 755CE, 755CSE, 755CV, 755CX (9545) 449
