Locations
Rear View
4 To attach an external keyboard,
mouse, or numeric keypad:
Page 125.
5 To attach a display:
Page 45.
7 To attach a printer:
Page 128.
8 To attach an external
diskette drive:
Page 57.
9 To connect the AC Adapter:
Page 21.
1
2
4 5 6 87 9
11 12
13
3

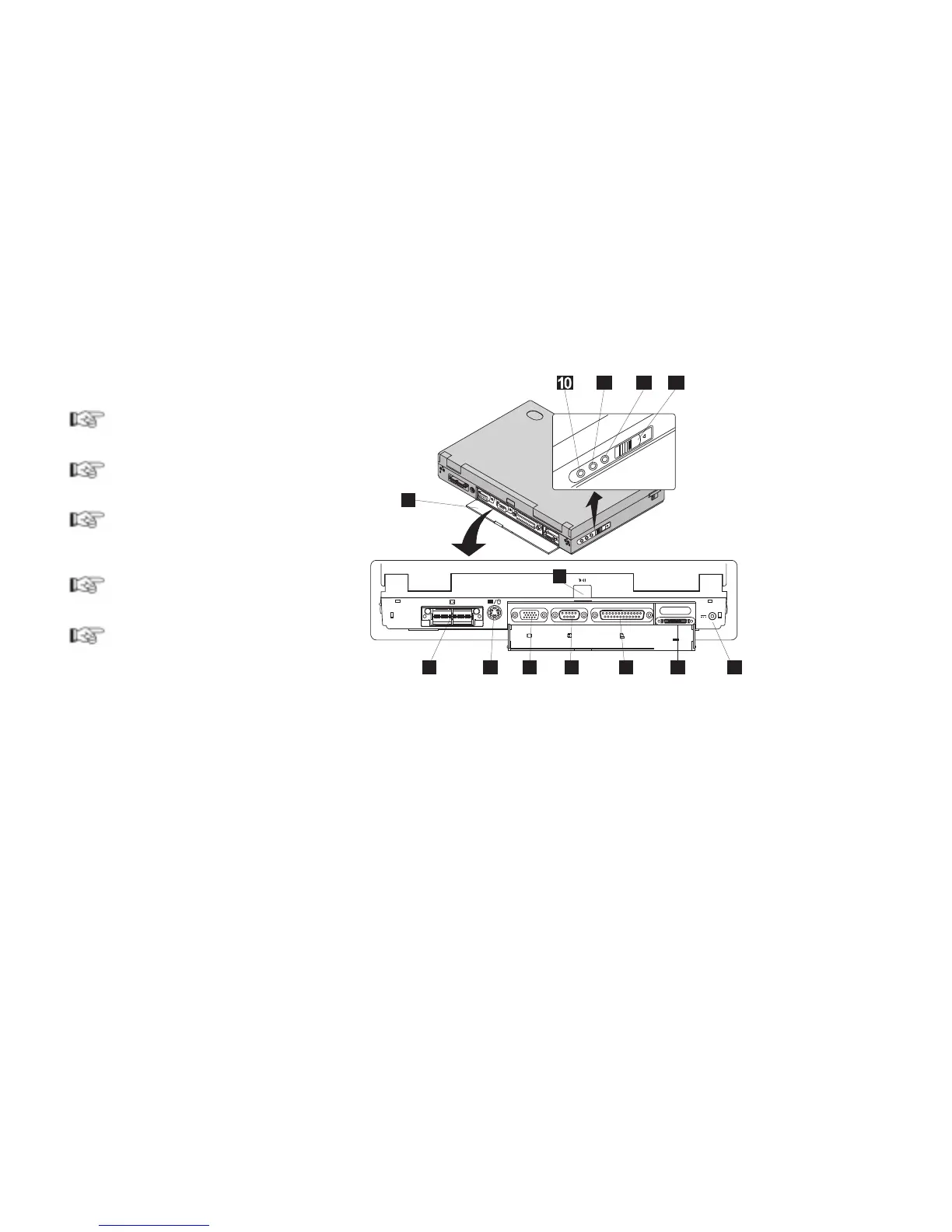

1 The rear door covers the
connectors on the rear of
the computer.
2 The expansion connector
allows connection of the
Port Replicator.
3 Infrared (IR) port
See page 54.
4 The external input-device
connector is where a
mouse, an external numeric
keypad, or the
keyboard/mouse connector
is plugged in. An external
keyboard can also be
connected through the
keyboard/mouse connector.
5 External display
connector
See page 45.
6 Serial connector
See “Checking Your Items”
on page 4.
7 Parallel connector
See page 128.
8 External diskette drive
connector
See page 57.
9 The power jack is where
the AC Adapter cable is
connected.
1 Line-out/headphone jack
11 Line-in jack
12 Microphone-in jack
13 The power switch turns
the computer on and off.
