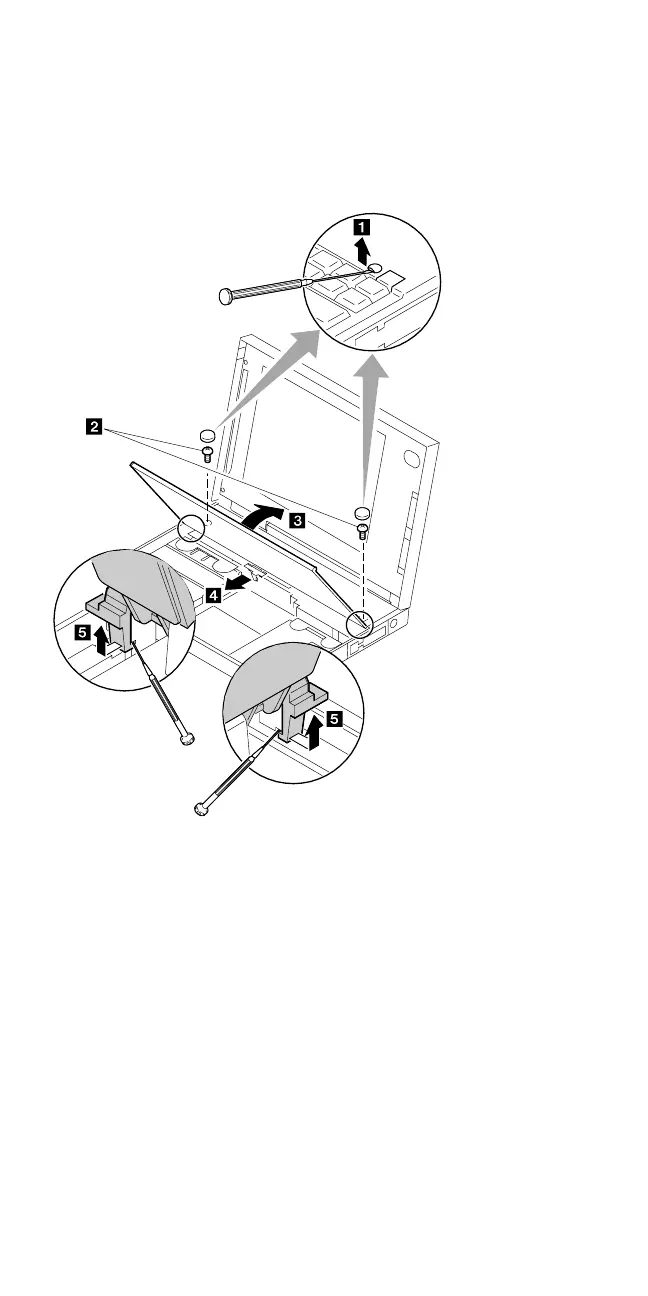

2040 Keyboard Unit
Battery Pack (2020)
▌1▐ When removing the screw covers, use a small
screwdriver as shown.
▌2▐ Warning: When using a screwdriver to remove
cover or latches, be careful not to:
Scratch the surface of the computer.
Break the latches.
▌3▐ Open the keyboard.
▌4▐ Remove the leaf-spring plate.
▌5▐ When unlatching the upper cover latches to remove
the upper cover, use a small screwdriver as shown.
ThinkPad 355x, 360x, 370C, 750x, 755C, 755Cs
265
