Disassembling the ThinkPad
701C/701CS
This procedure provides the steps required to completely
disassemble the ThinkPad 701C/701CS.
The three exploded views show the parts of the computer
that are removed at various stages of the disassembly
process. The numbered callouts in the figures correspond
to steps in the procedure.

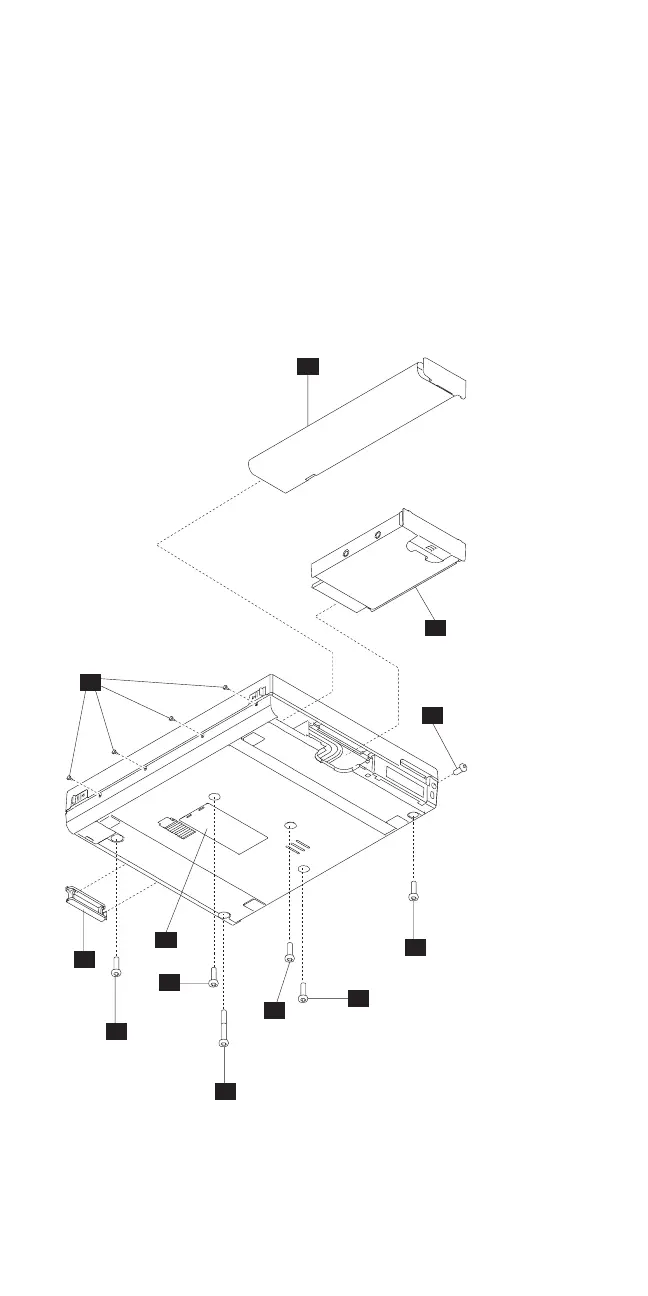

ThinkPad 701C/701CS Exploded View
6
2
9
5
1
7
4
10
10
10
10
10
BC
BF
BH
BE
BC
BC
BC
BK
ThinkPad 701C/701CS (2630) 163
