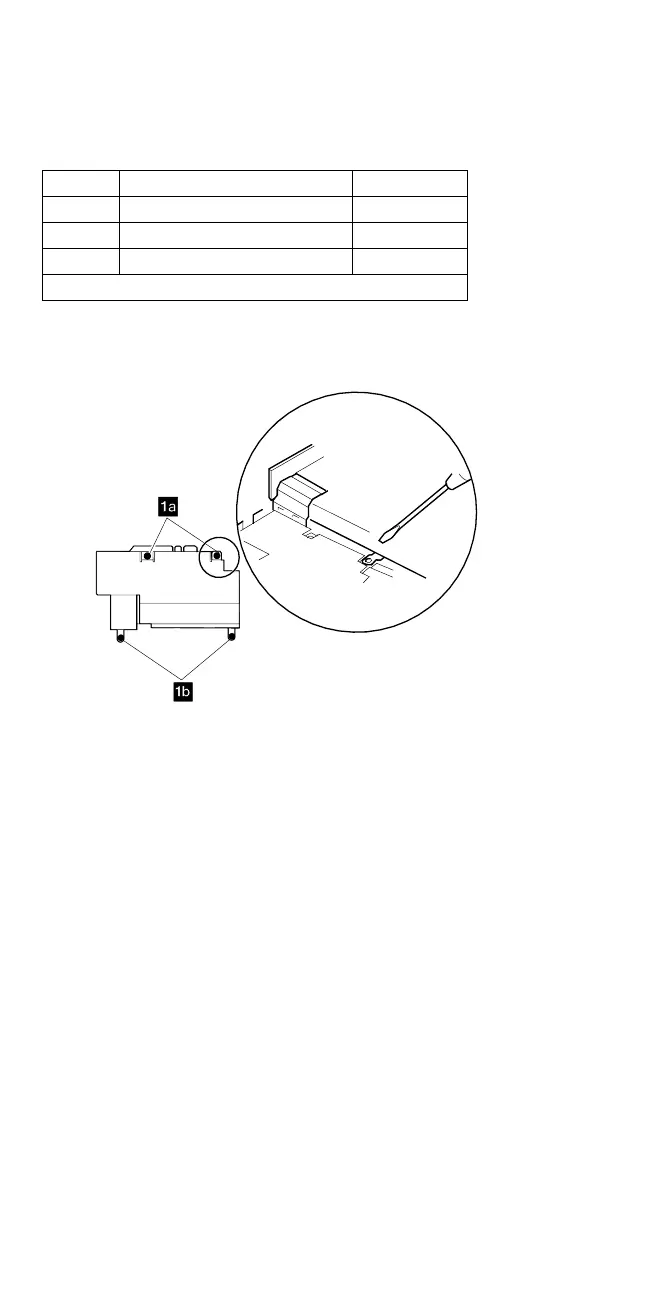

Use the following table for reference when replacing parts.
Note: When you reinstall the upper shield, make sure the
LCD ground-terminal is located correctly as shown
in the circle.
Step Location (Quantity) Length
▌1a▐ Speaker shield (2) 4 mm
▌1b▐ Diskette drive connector (2) 6 mm
▌5▐ Lower Shield (2) 4 mm
Note: Make sure you use the correct screw.
