2115 Logic Assembly
CD-ROM Drive (2030)
Battery Pack (2020)
Hard Disk Drive (2040)
Keyboard Unit (2080)
Status Indicator (2090)
Standby Battery and Front IR (2100)
Backup Battery (2110)

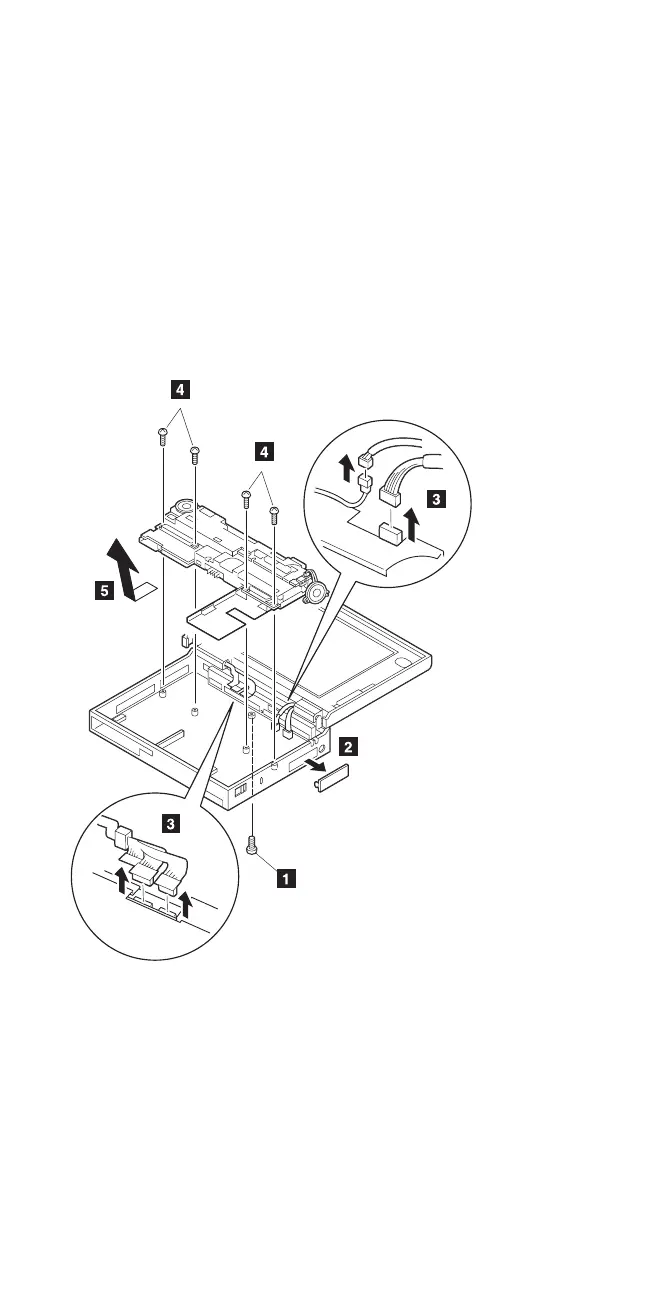

The screw ▌1▐ is located at the rear bottom side.
See next page.
Note: When replacing the logic assembly, align the
power-key slide hub with the power-switch actuator
by moving the power-key in the direction of the
arrow. See the large circle in the figure. Before
tightening any screws, check that the power-switch
operates correctly.
ThinkPad 755CD, 755CDV (9545)
365
To Next Page
