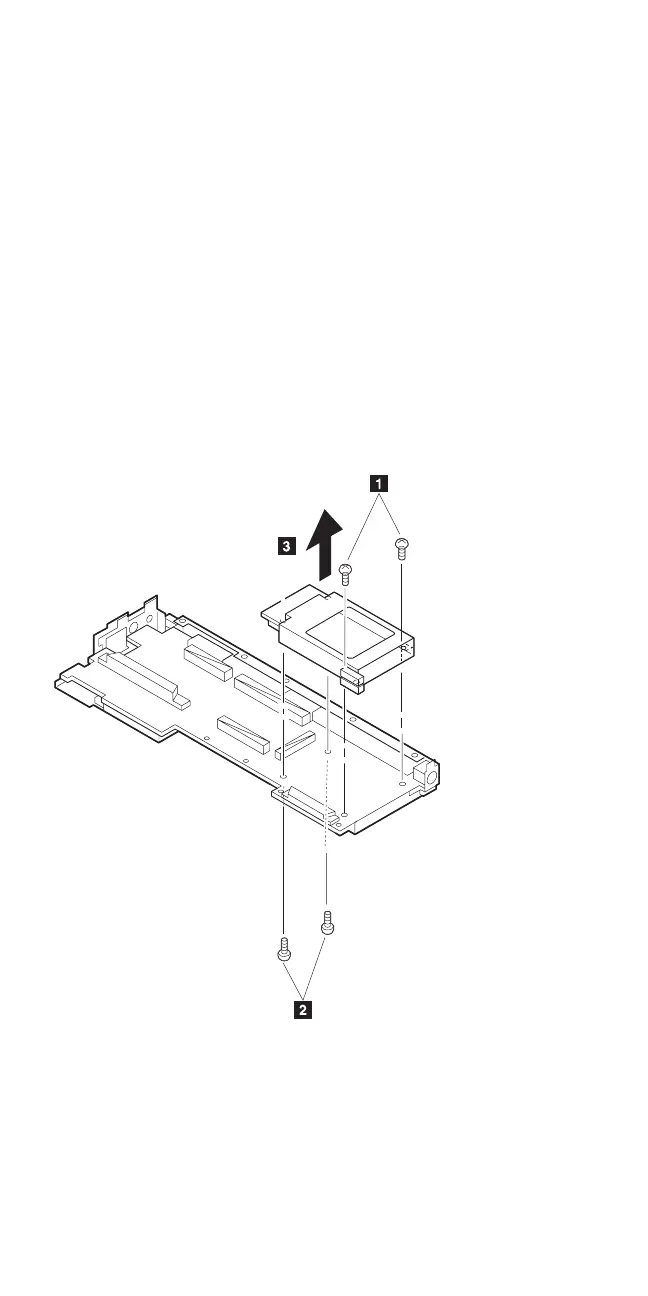

2170 PCMCIA Slot Assembly
CD-ROM Drive (2030)
Battery Pack (2020)
Hard Disk Drive (2040)
Keyboard Unit (2080)
Status Indicator (2090)
Backup Battery (2110)
Standby Battery and Front IR (2100)
Logic Assembly (2115)
Shield Assembly (2120)
Video Card or Rear IR (2125)
DC/DC Card (2130)
DSP Card (2140)
Interposer Card (2150)
Processor Card (2180)
Notes:
1. When handling the PCMCIA slot assembly, be careful
not to disassemble any part of it. The slot assembly
is not solidly fixed when it is removed from the
system board or the FRU.
In step ▌3▐, gently pull up the bottom of the center
area of the connector board edge with your fingers.
2. The screw stand at each corner of the PCMCIA slot is
ThinkPad 755CD, 755CDV (9545) 373
