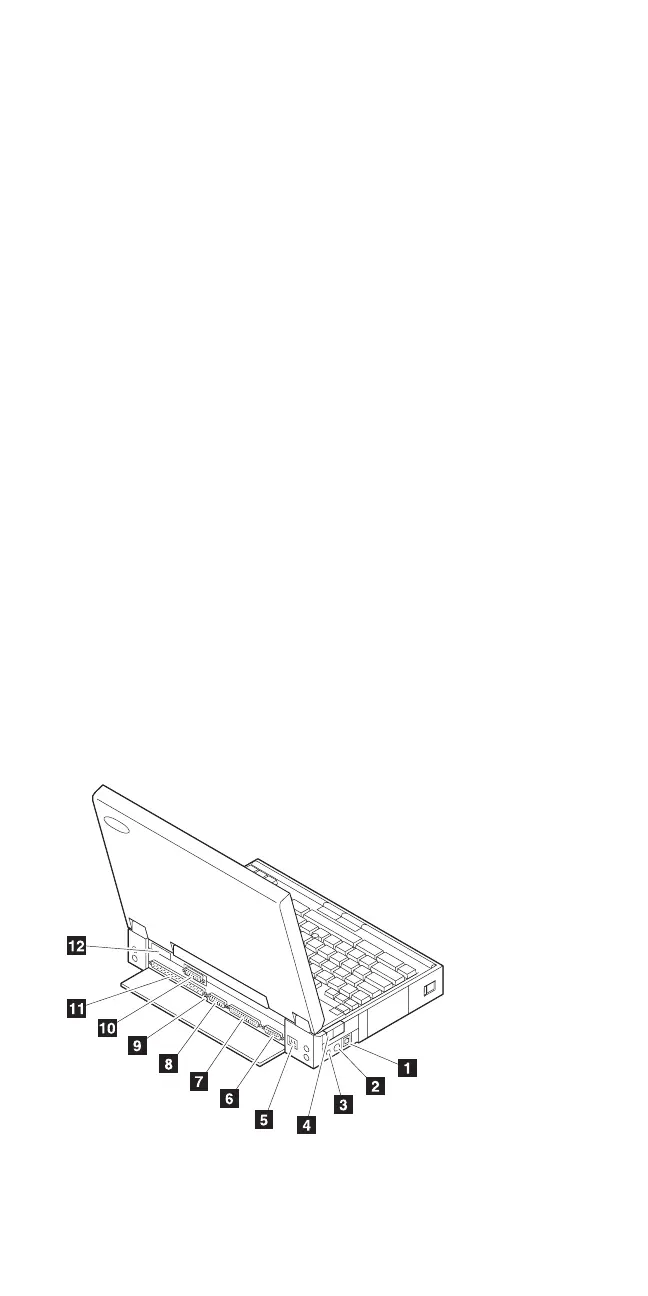

Rear View
▌1▐ Telephony Jack
▌2▐ Microphone/Line-In Jack
▌3▐ Headphone Jack
▌4▐ Power Switch
▌5▐ Power Jack
▌6▐ Serial Connector
▌7▐ Parallel Connector
▌8▐ External-Display Connector
▌9▐ Reset Switch
▌10▐ Game Port
▌11▐ System Expansion Connector
A multimedia portable expansion unit, port
replicator, or port replicator with PCMCIA can be
connected to this interface to support the following
features.
16-bit AT-bus interface
Serial port
Parallel port
Keyboard and mouse
HDD connection
LED control signals
Visual signals
Audio signals
FDD signals
PCMCIA signals
Power controls
Power line
▌12▐ Rear Infrared Port
382 IBM Mobile Systems HMM
