1040 Hard Disk Drive
 Battery Pack (1020)
Notes:
1. Do not drop or apply any shock to the hard disk
drive. The hard disk drive is sensitive to physical
shock. Incorrect handling can cause damage it, and
cause permanent loss of data on the hard disk.
Before removing the hard disk drive, have the user
make a backup copy of all the information on the hard
disk. Never remove the hard disk drive while the
system is operating or is in suspend mode.

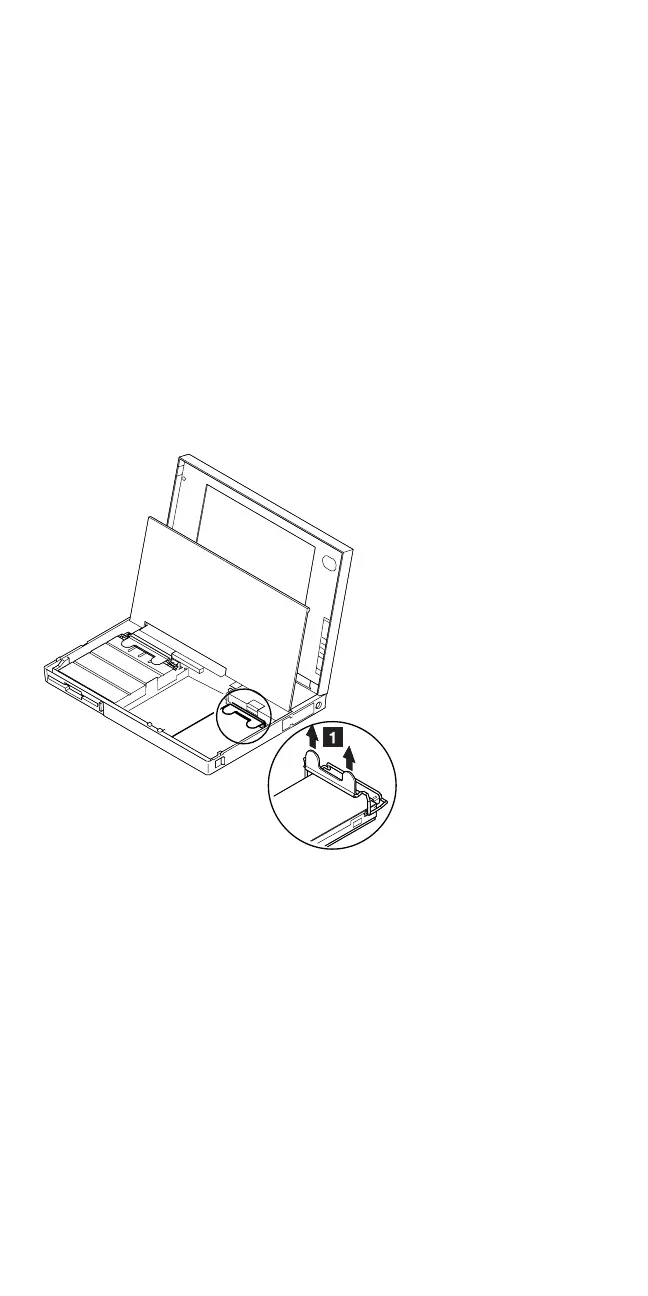

2. Remove the hard disk drive exactly as shown in the
figure. Do not apply any extra force to the hard disk
drive when removing it.
Note: After replacing the hard disk drive, latch the
removal strap into the correct position.
430 IBM Mobile Systems HMM
