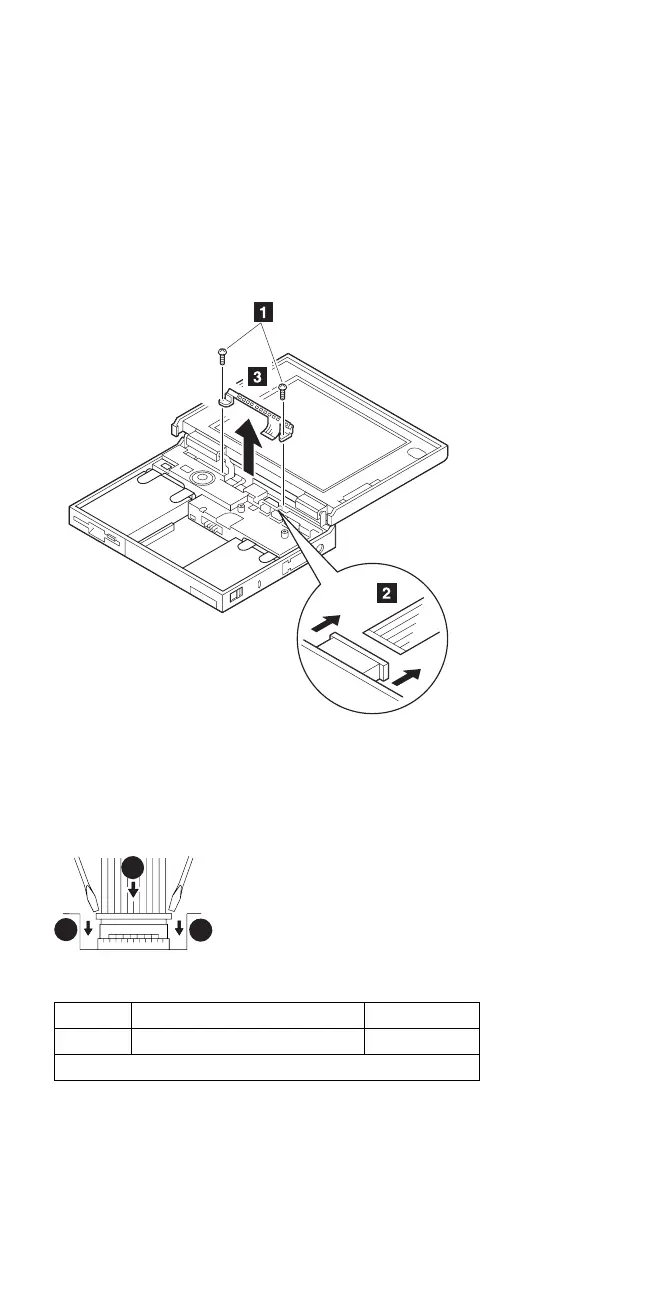

1090 Status Indicator
Battery Pack (1020)
Keyboard Unit (1080)
Warning: Do not pull the status indicator cable. The
cable can be damaged if the status indicator is
disconnected without releasing the latch in step ▌2▐.
Note: When replacing the indicator, insert the flexible
cable straight into the connector until the head of
the cable stops. Slide both ends of the latches at
the same time to make sure that the cable is
correctly inserted.
1
2
2
Use the following table for reference when replacing parts.
Step Location (Quantity) Length
▌1▐ LED Stand off (2) 6 mm
Note: Make sure you use the correct screw.
ThinkPad 755CE, 755CSE, 755CV, 755CX (9545) 437
To Next Page
