1170 Ultrabay 2000 slot
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 58
v “1020 Backup battery” on page 59
v “1030 Hard-disk drive” on page 61
v “1070 Ultrabay 2000 device” on page 71
v “1080 Keyboard” on page 72
v “1090 Keyboard CRU insulator” on page 80
v “1100 Hinge cover” on page 81
v “1110 Keyboard bezel” on page 86

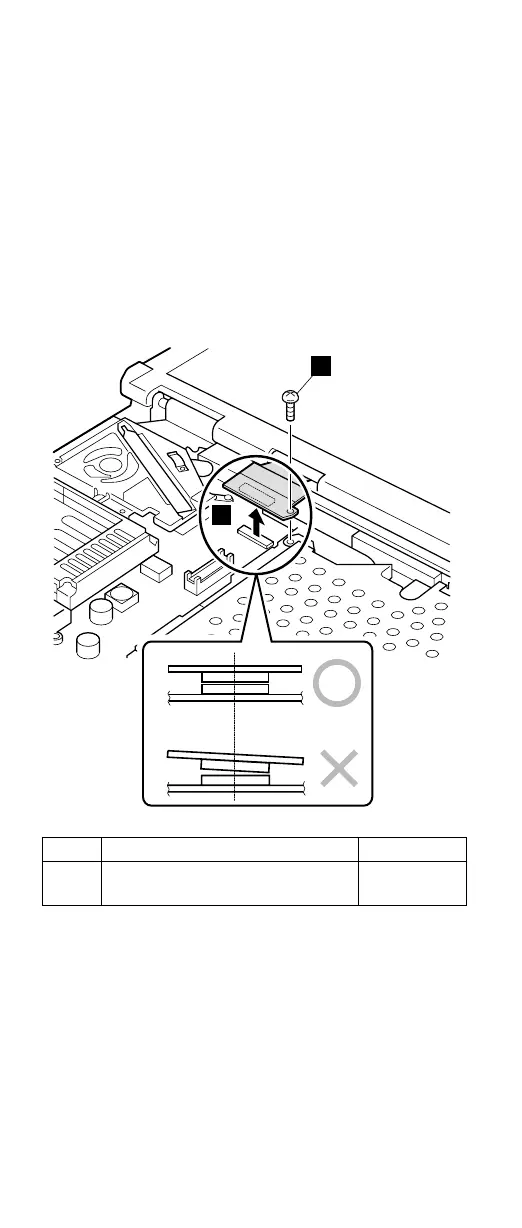

For T20 series
1
2
Step Screw (quantity) Torque
1 M2.5 × 14 mm, nylon-coated (1) 39.2 Ncm
(4 kgfcm)
Note: T20 series do not have the removal procedure 3
and 4. After step 2, go to step 5.
When installing: Make sure that the FPC connector is
firmly attached.
(continued)
Removing and replacing a FRU
106 ThinkPad T20, T21, T22, T23 (MT 2647/2648)
