ICE i20NB / i20NBT / i20NBT-OB / i24BT

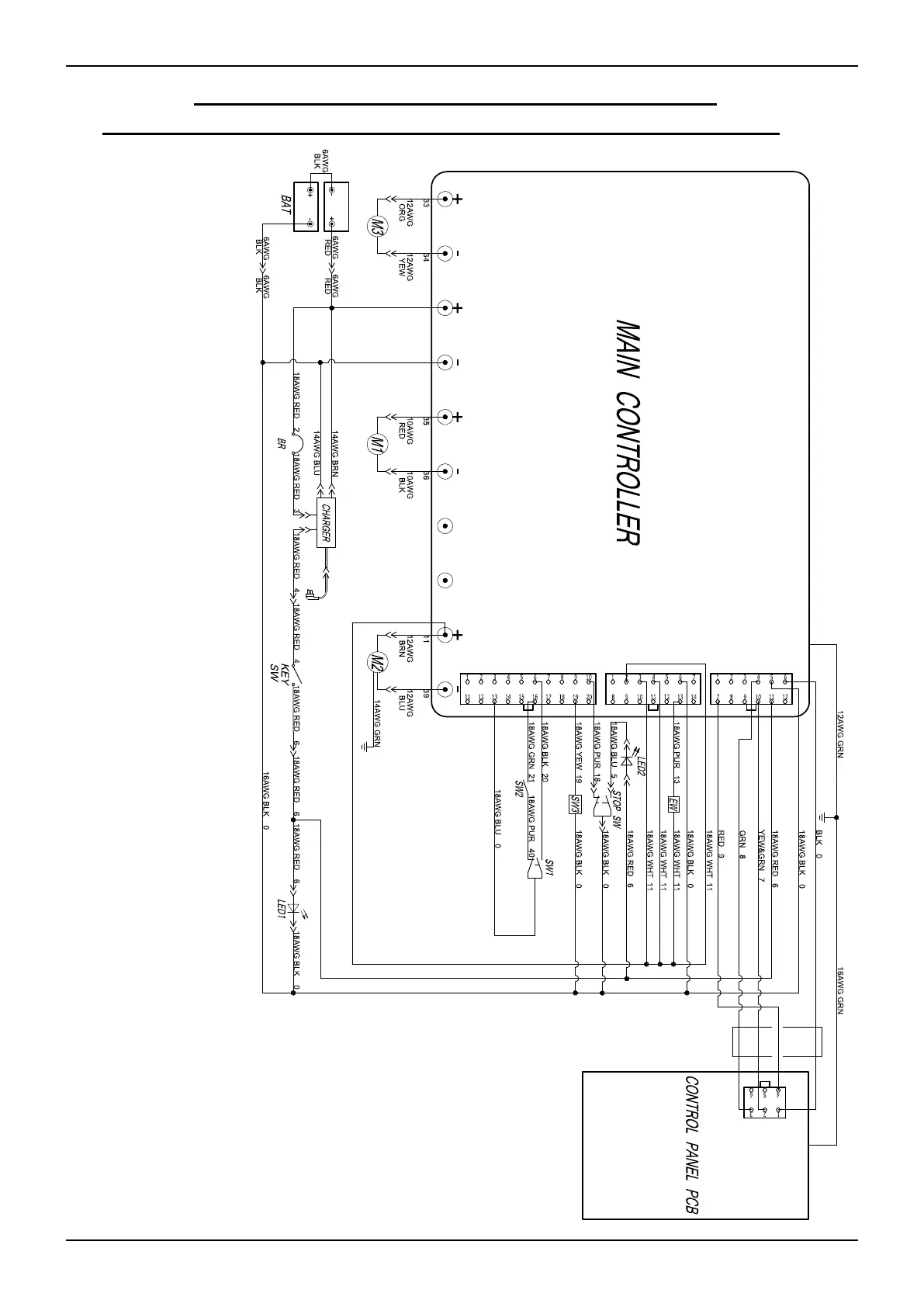

WIRING DIAGRAM

WIRING DIAGRAM（i20NBT, i20NBT-OB & i24BT)

(SN: i20NB - 529+, i20NBT - 604+, i20NBT-OB - 294+, i24BT - 321+ )

BAT: 2-12V Batteries

BR: Main controller circuit breaker

KEY SW: Main power key switch

LED1: Running light

CHARGER: On board battery charger

M3: Transaxle motor

M1: Brush motor

M2: Vacuum motor
