18

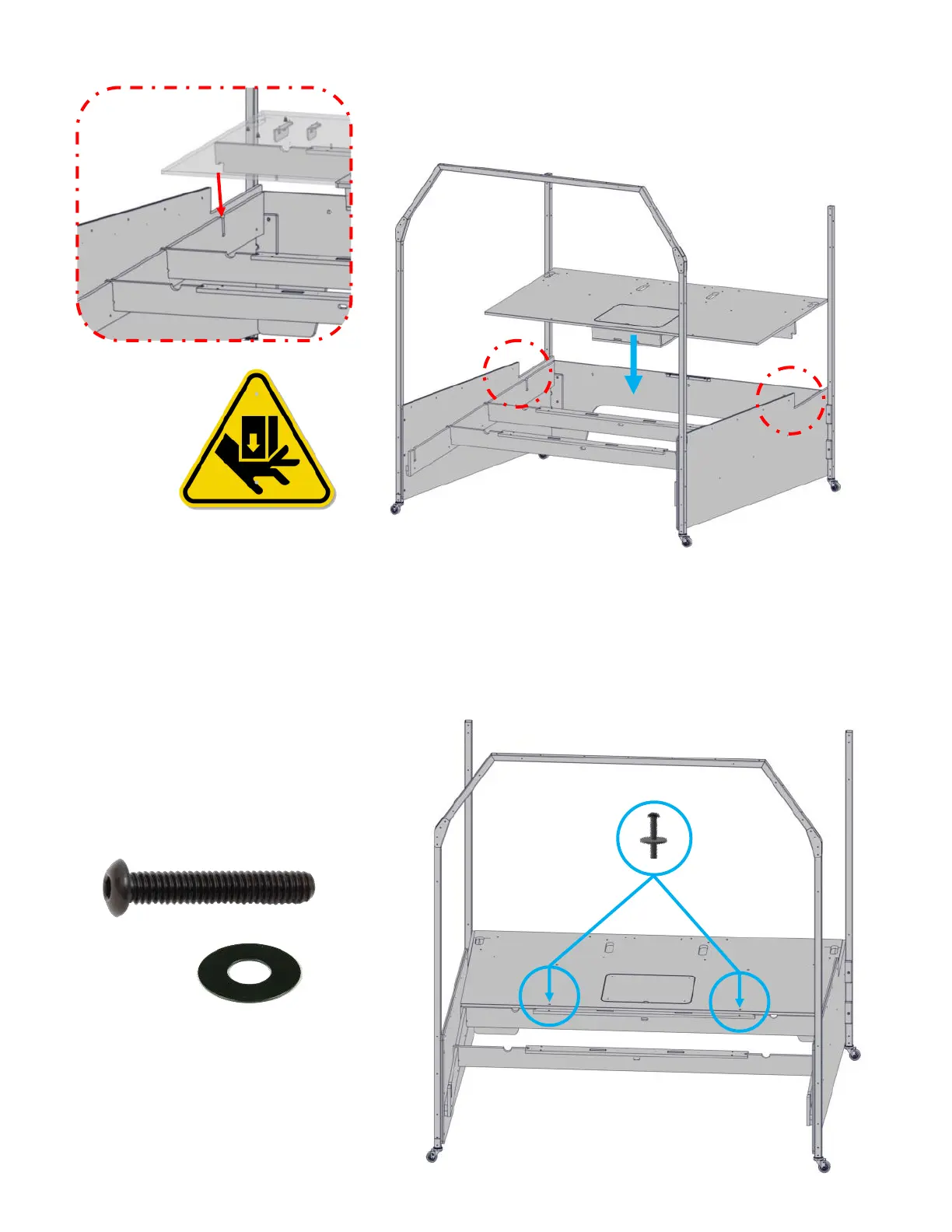

STEP 9:
Slide the power sub-floor (1E) into the rear channels.
Align the tabs into the slots. WATCH YOUR FINGERS!
AA6212 1/4 X 3/4
black washer
STEP 10:
Secure the power sub-floor (1E) using two AA6584 black Allen bolts and AA6212 black washers.
NOTE: Although all efforts we made to ensure quality in parts, before
installing this panel, inspect the panel for damage to wiring or mounting
holes not fully cleaned out.
X’s 2
AA6584 1/4-20 X 2 black Allen
To Next Page
