AA6212 1/4 X 3/4 FLAT
WASHER BLACK
AA6584 1/4-20 X 2 (BLACK)
STEP 13:

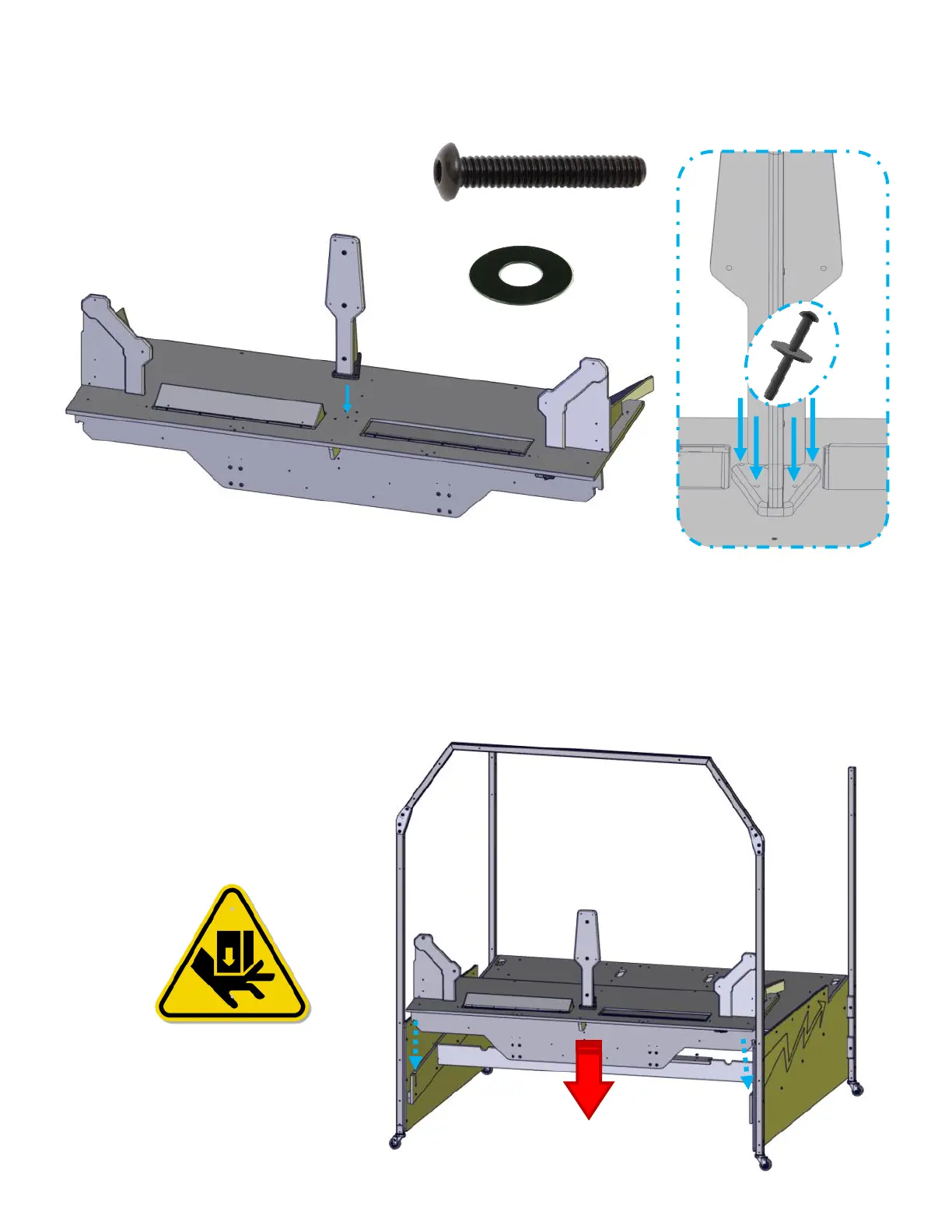

Attach the 1K center support with four AA6584 black Allen bolts and four AA6212 black washers
from the top and at the back of the support.
STEP 14:
Slide the 2E ball gate assembly into the front slot of the base cabinet. Watch your fingers!
DO NOT SECURE AT THIS TIME.
X’s 4
NOTE: Although all efforts we made to ensure quality in parts, before
installing this panel, inspect the panel for damage to wiring or mounting
holes not fully cleaned out.
