27

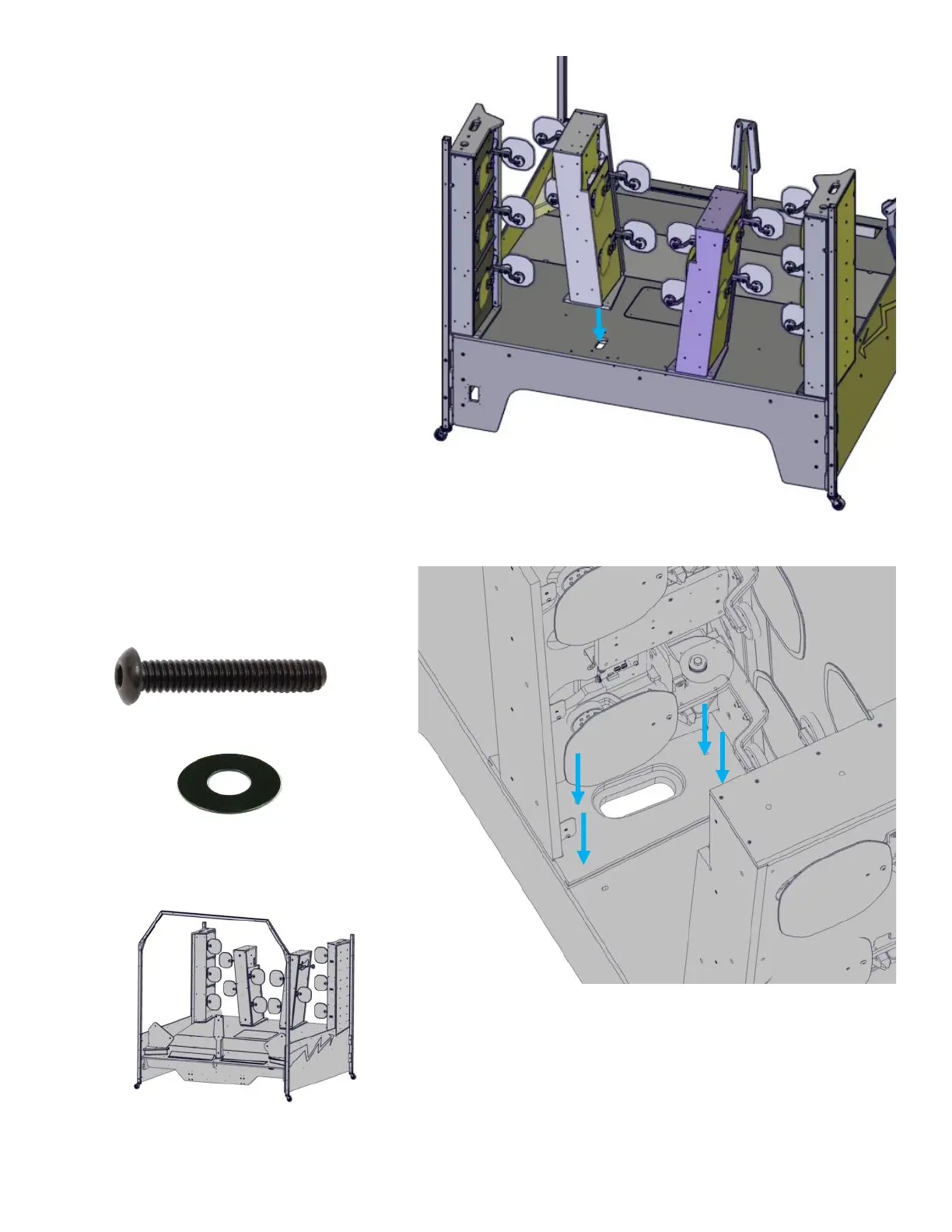

STEP 21:
Position 2A inner tower to the left and 2B
inner tower to the right at the back of the
cabinet. Align the hole at the bottom of the
towers with the holes already at the back.
STEP 22:
Secure each of the inner towers using four AA6584 black Allen bolts and AA6212 black washers.
Do not install tower covers at this time.
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
AA6584 1/4-20 X 2 (BLACK)
X’s 4
T-Molding goes to the bottom!
Towers Assembled
