STEP 19:

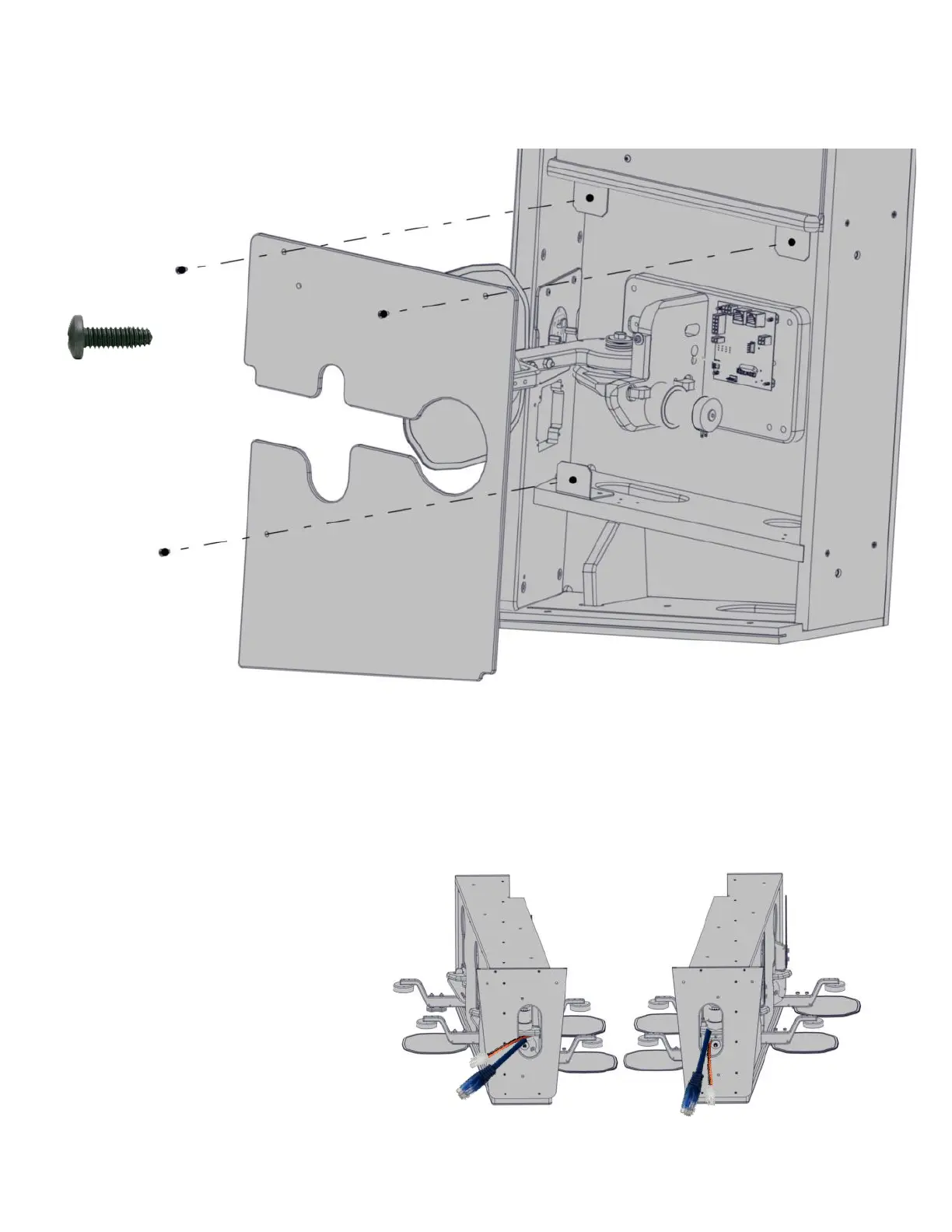

Install the 2M and 2N lower panel covers to both score towers using three AA6004 each.
USE A SCREW DRIVER or lower Torq setting.
These covers must remain removal for future service.
AA6004 - 8-32 X 1/2
X’s 3
STEP 20:
Lay the 2A left and 2B right inner towers on their backs. Both towers should have one network cord
and one DC connection (one large). Carefully pull them out and ensure no damage has been done
to the network cables. It might be possible that the network cables can “catch” on internal wiring
inside the towers. Wiggle the cable up, down, back and fourth until it is free.
2M or 2N
