25
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
AA6584 1/4-20 X 2 (BLACK)
Secure using three AA6584 black Allen bolts and
AA6212 black washers. Use the Allen wrench
to access the back bolt inside.

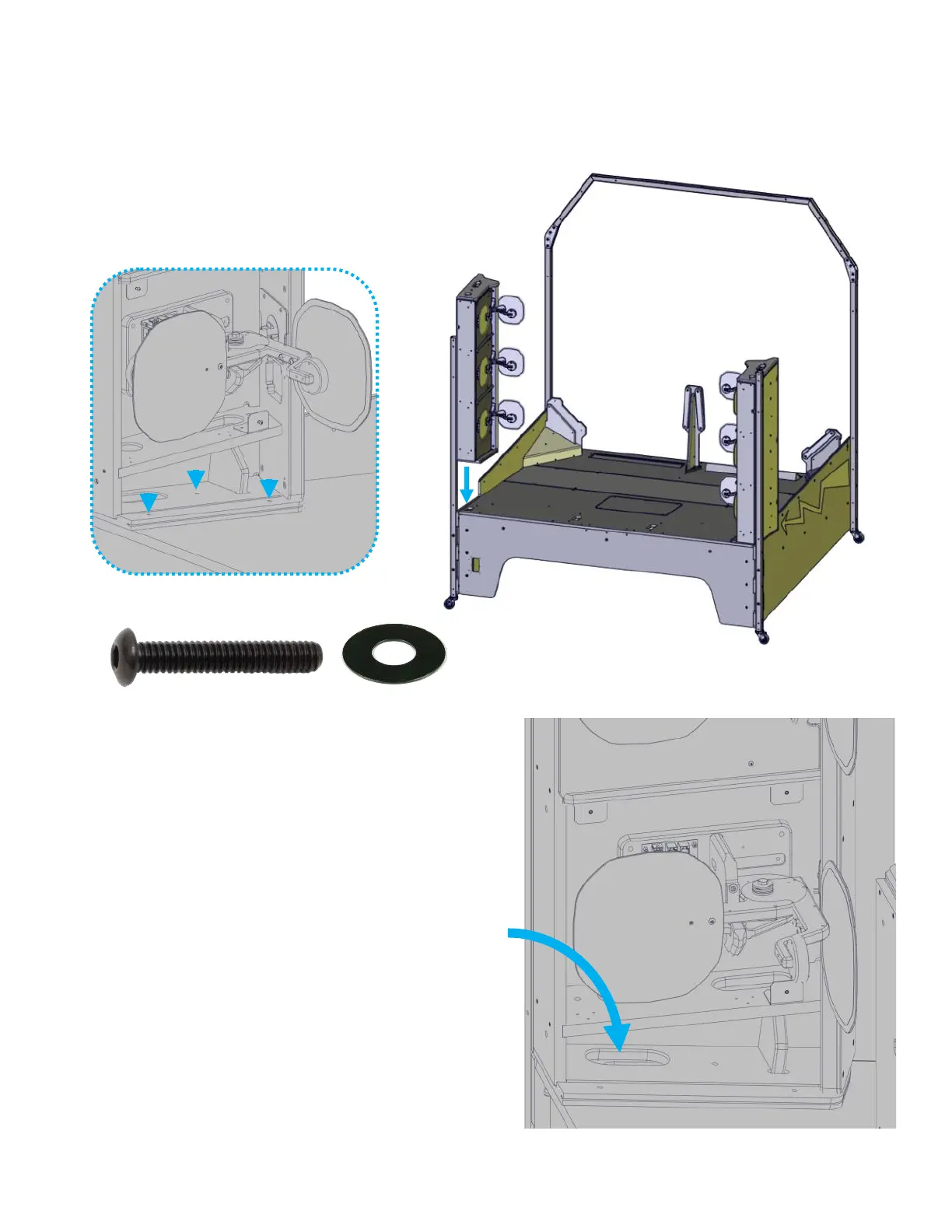

STEP 18:
Position 2C target assembly to the left and 2D target assembly to the right at the back of the
cabinet. Align the hole at the bottom of the towers with the holes already at the back.
Push ethernet and power cables to
the bottom of the game.
X’s 3
