STEP 23:
THIS STEP REQUIRES HELPERS! DO NOT ATTEMPT TO LIFT ALONE!
RECOMMEND THREE PEOPLE TO INSTALL THIS ASSEMBLY.
DO NOT ATTEMPT TO INSTALL FROM THE FRONT!
THIRD PERSON POSITION SHOULD BE AT THE FRONT, INSIDE THE CABINET TO MOUNT
HARDWARE AND STABILIZE CENTER TARGET/JUMBOTRON ASSEMBLY.

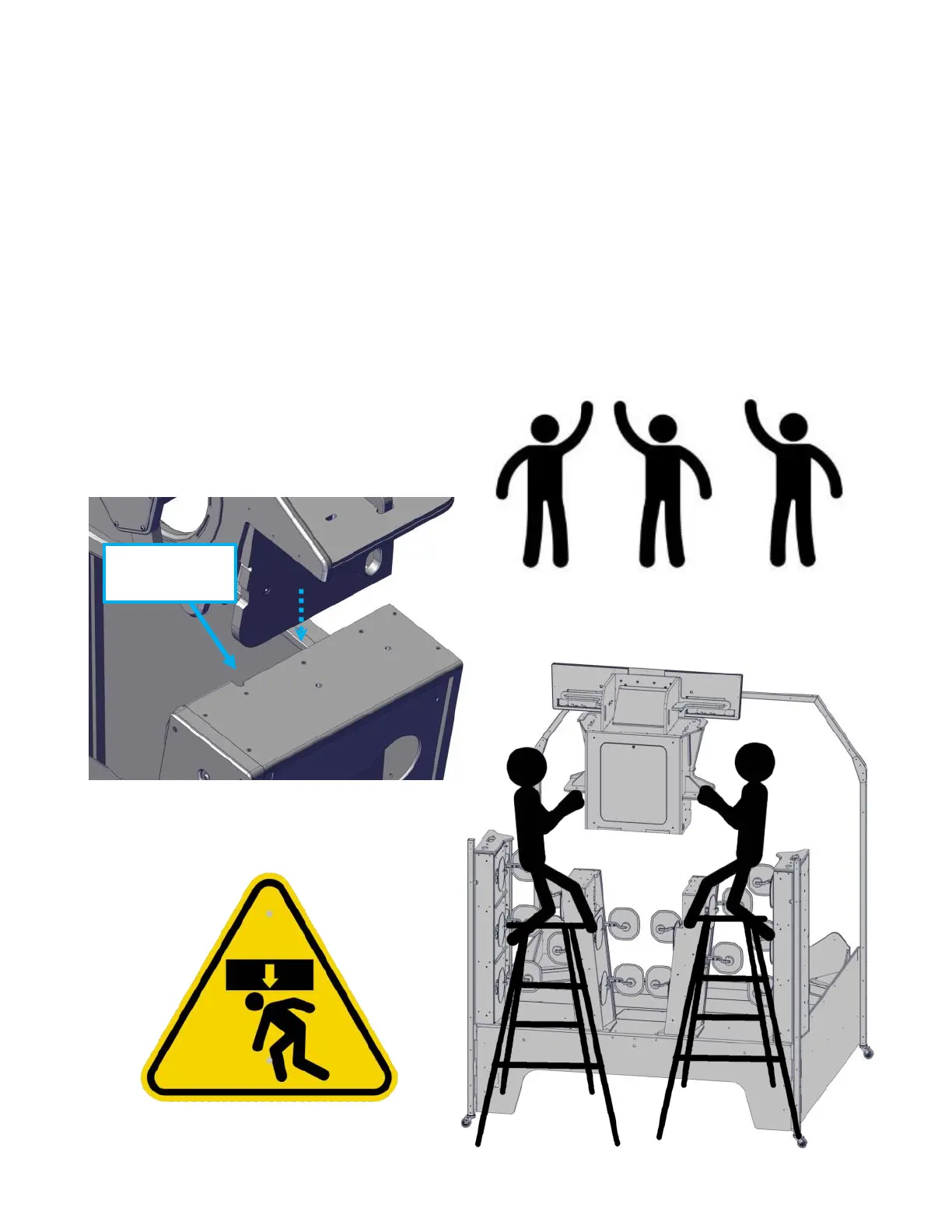

Lift the 1D jumbotron up and onto the (2A & 2B) inner score towers.
There are slots the jumbotron assembly fits into. The assembly will not evenly fit between the two
inner towers unless it is in aligned to the slots.
Notch at front
at each side
Recommend 3 helpers!
