31
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
AA6584 1/4-20 X 2 (BLACK)

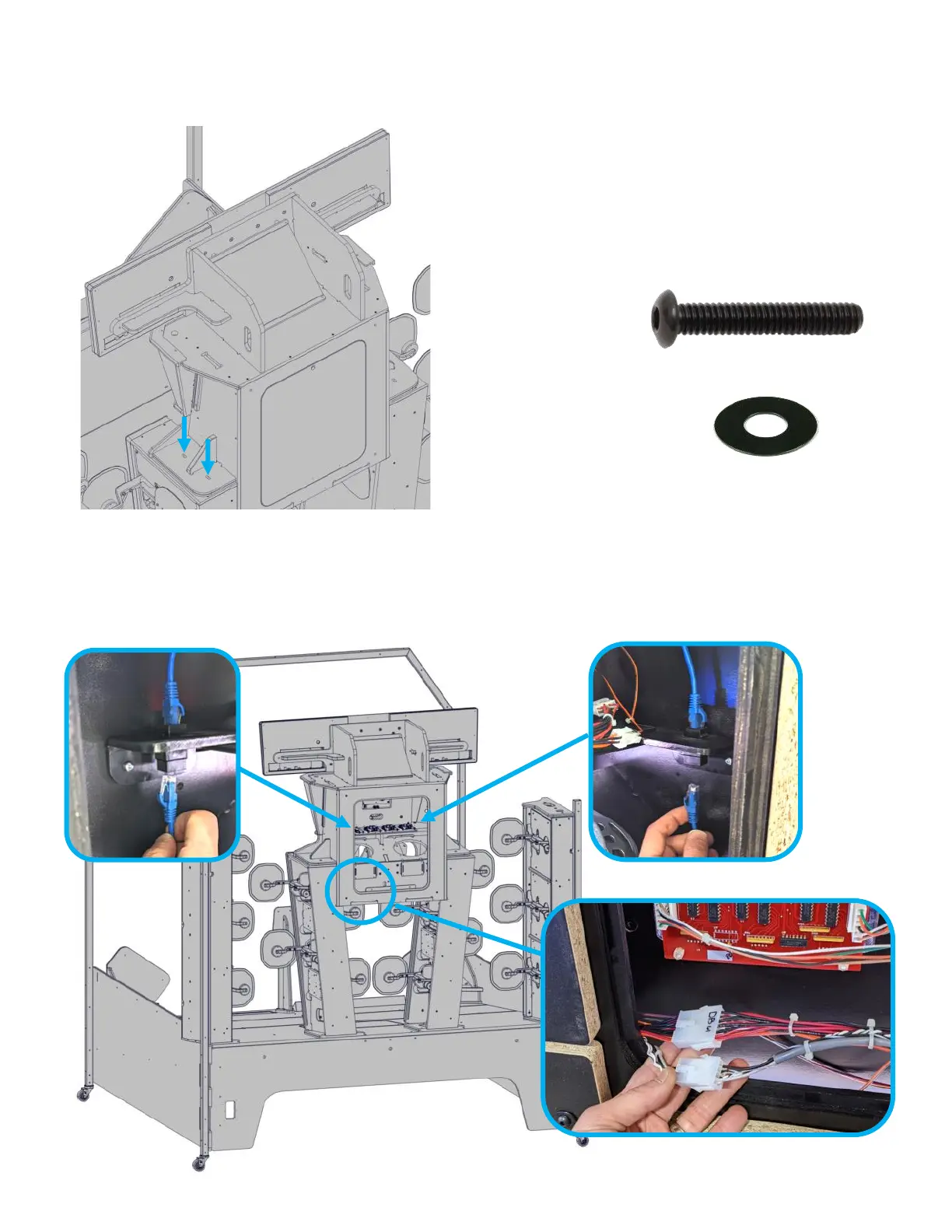

Use two AA6584 black Allen bolts and AA6212
black washers on each side of the center target
assembly.
STEP 25:
Secure each inner tower to the jumbotron using three AA6584 black Allen bolts and AA6212 black
washers.
STEP 26:
From the back of the game connect the power and coms harnesses.
Then connect one ethernet cable from each center score tower to the center score assembly.
NETWORK CABLES FROM SCORE TOWERS.
POWER AND COMS HARNESSES
X’s 4
To Next Page
