Icegame DODGEBALL - Page 35

35
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
PC60636 1/4-20 X 3 (BLACK)

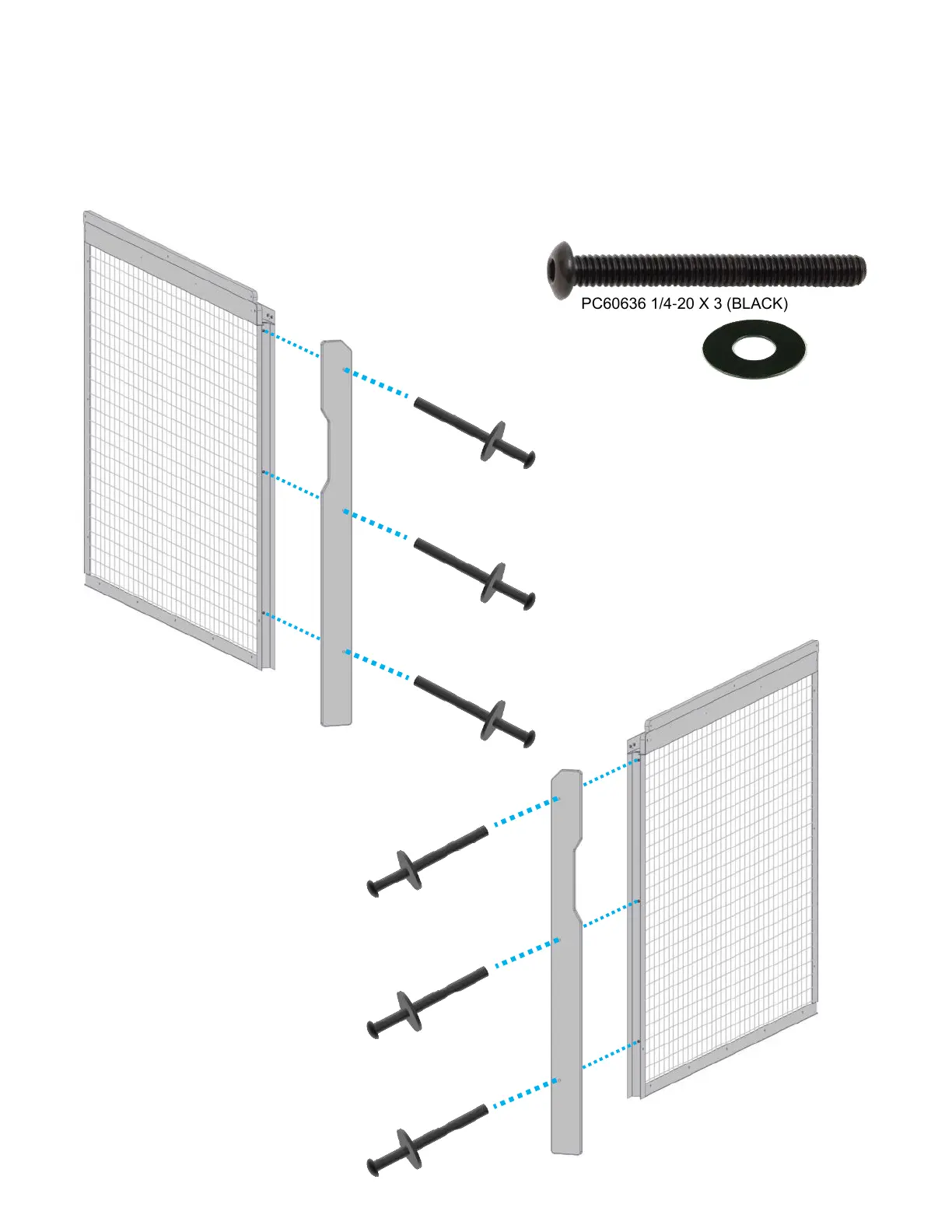

STEP 28:
Attach a 3J to each cage (2G & 2H) front using three PC60636 black Allen bolts and AA6212 black
washers. The notch faces to the outside of the cages.
It is necessary to raise the cages off the ground to install.
X’s 6
2G
3J
2H
3J
