Icegame DODGEBALL - Page 36

36

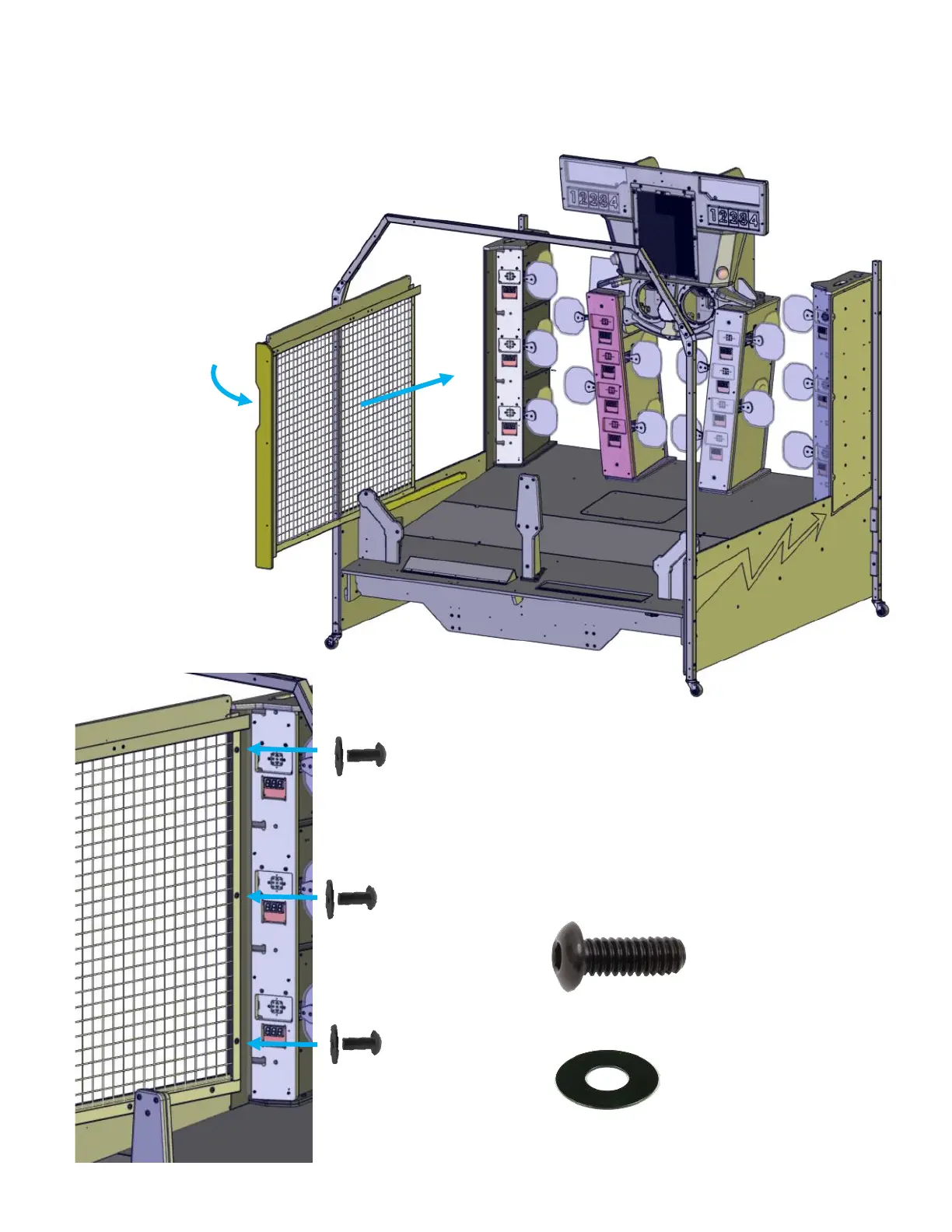

STEP 29:
Position the 2G (left) cage assemble on the left side and against the 2C outer tower.
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
PC60622 1/4-20 X
1 (BLACK)
STEP 30: DO NOT TIGHTEN HARDWARE
Loosely secure the cage to the 2C outer tower using
three PC60622 black Allen bolts and AA6212 black
washers from the inside of the cabinet.
X’s 3
Notch to the outside.
