Icegame DODGEBALL - Page 40

40
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
PC60622 1/4-20 X
1 (BLACK)

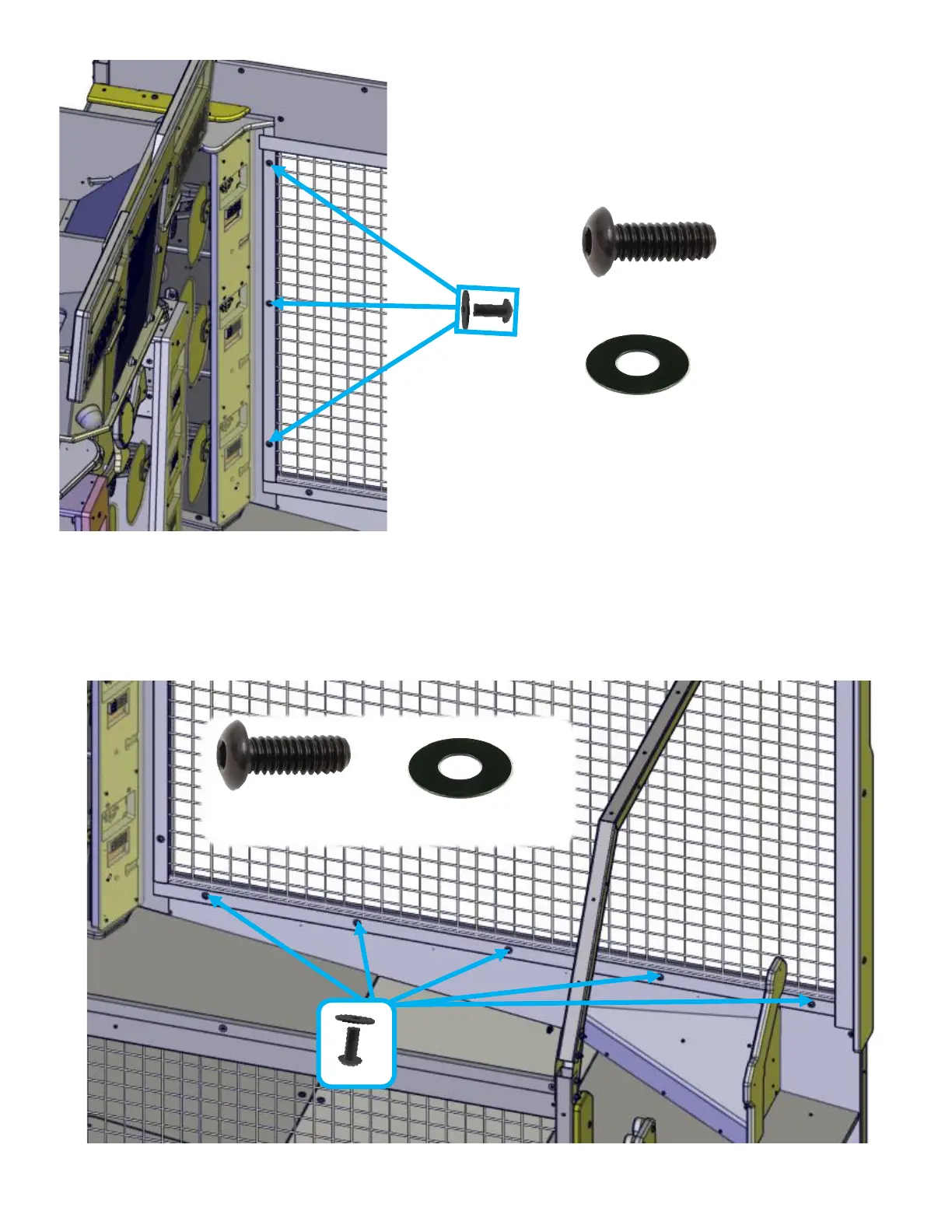

STEP 37: DO NOT TIGHTEN HARDWARE
Secure the cage to the outer tower using three PC60622
black Allen bolts and AA6212 black washers from the
inside of the cabinet.
STEP 38: DO NOT TIGHTEN HARDWARE
Secure the cage bottom to the cabinet using five PC60622 black Allen bolts and AA6212 black
washers from the inside of the cabinet.
X’s 3
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
PC60622 1/4-20 X
1 (BLACK)
X’s 5
