Icegame DODGEBALL - Page 41

41

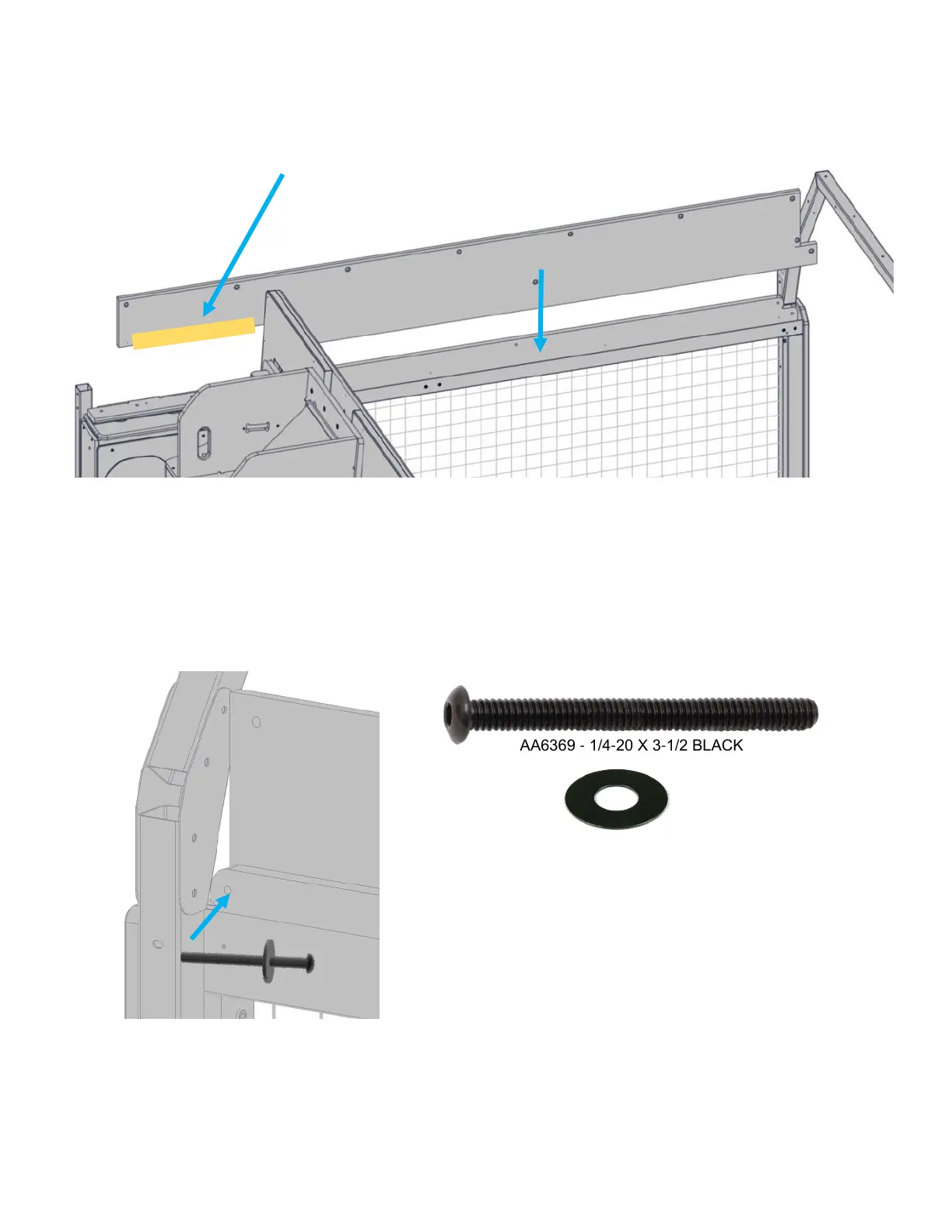

STEP 39
Slide the 1R filler panel onto the 2H right cage top.
STEP 40:
Secure the cage to the front cabinet legs using one AA6369 Black Allen Bolt and AA6212 black
washer.
OUTSIDE
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
AA6369 - 1/4-20 X 3-1/2 BLACK
X’s 1
