Icegame DODGEBALL - Page 42

42

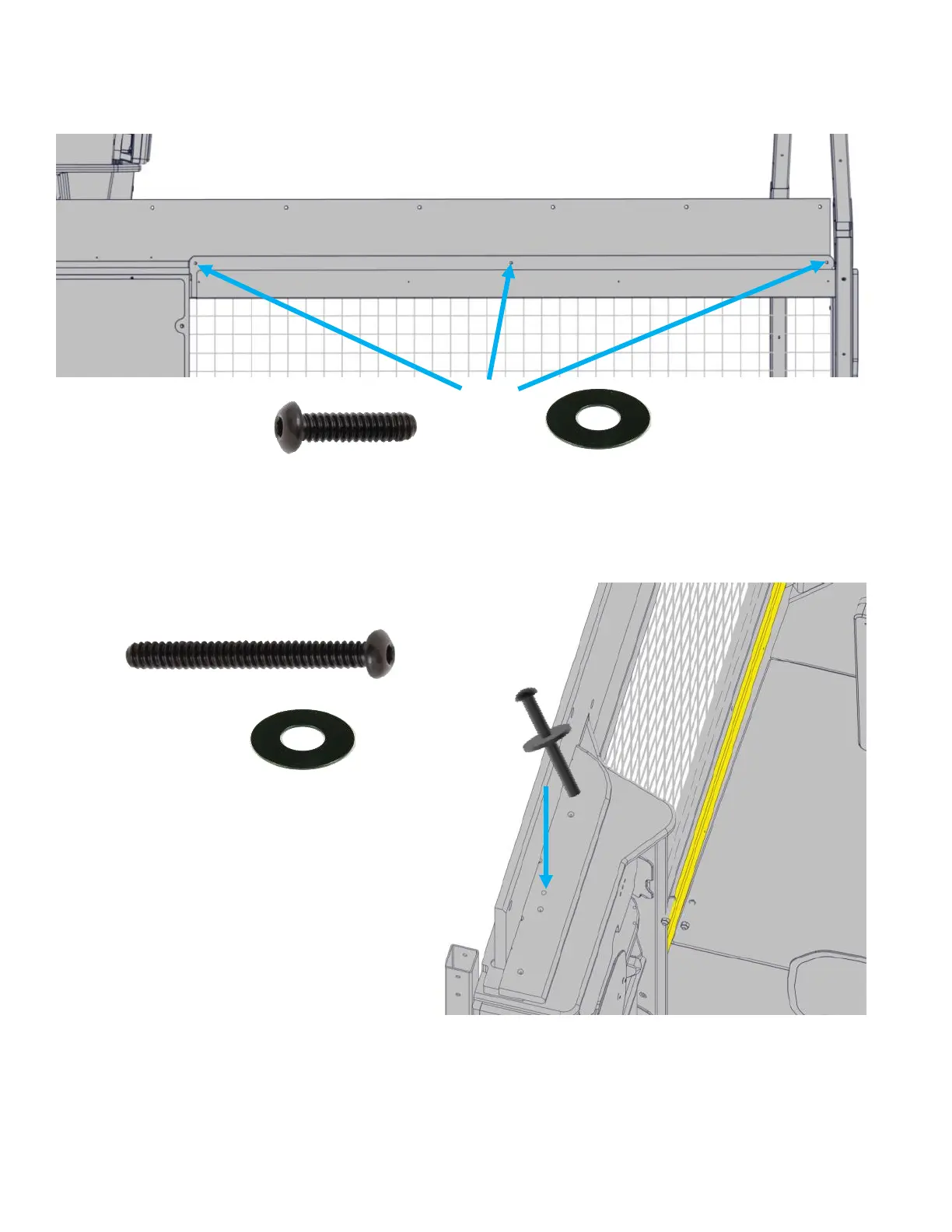

STEP 41:
Secure the cage to the DB3158 using three AA6281 Black Allen Bolts and AA6212 black washers.
STEP 42:
Secure the cage assembly to the back tower with one AA6125 black bolt and AA6212 black washer.
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
AA6125 1/4-20 X 2-1/2 black
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
AA6281 1/4-20 X 1-1/2 BLACK
STEP 43:
Tighten all hardware for the cages.
X’s 3
X’s 1
2H
3J
3J
2D
