Icegame DODGEBALL - Page 43

43

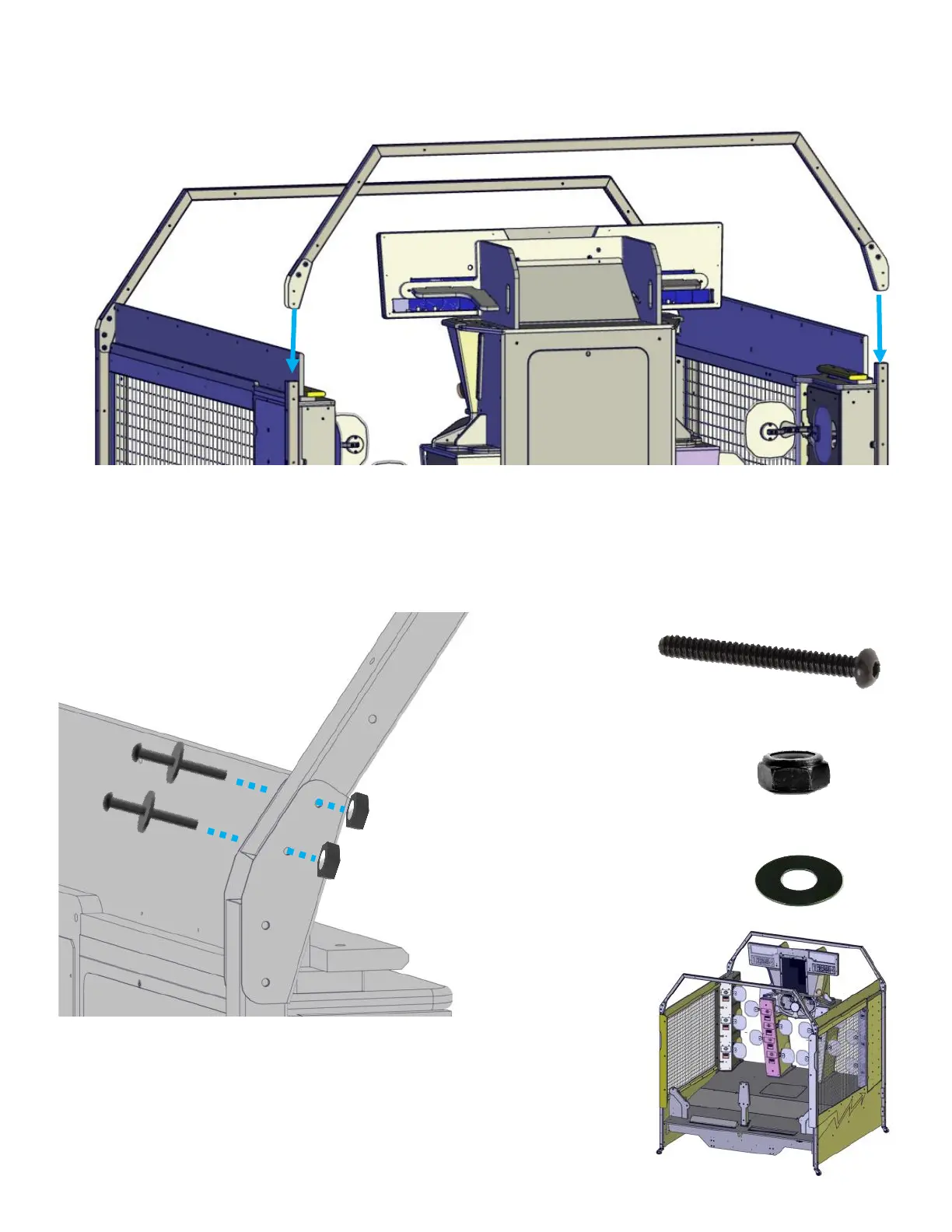

STEP 46:
Loosely secure the 2K arch using two AA6125 Allen bolts and AA6212 washers from the backside
and secure them with AA6966 nylon nuts at the front on both sides.
DO NOT TIGHTEN AT THIS TIME.
X’s 4
AA6212 1/4 X 3/4
black washer
AA6966 1/4-20
nylock black nut
AA6125 1/4-20 X 2-1/2
black Allen
Cages Assembled
STEP 45:
Slide the back 2K roof arch into the back legs.
2K
