Icegame DODGEBALL - Page 67

67

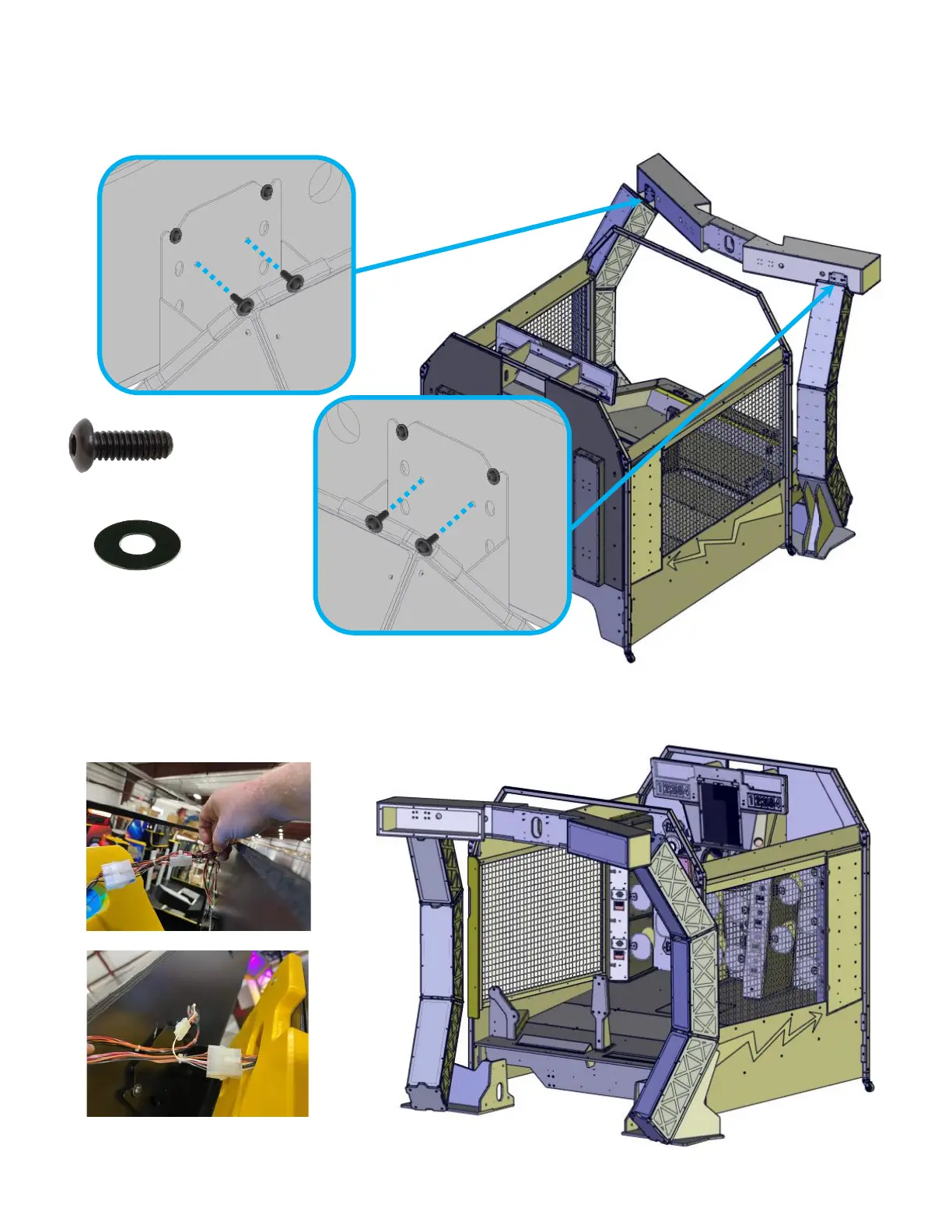

STEP 72:
Connect the arch wiring on the left and right sides of the towers.
STEP 71:
Secure the arch assembly with two PC60622 and AA6212 on each side. Then tighten the bolts used
to hook the arch assembly to the bracket.
PC60622 1/4-20 X
1 (BLACK)
AA6212 1/4 X 3/4
black washer
X’s 4
Completed Archway
