Icegame DODGEBALL - Program Settings, Diagnostics, and Controls

77
PROGRAM SETTINGS - DIAGNOSTICS - VOLUME - POWER CONTROLS

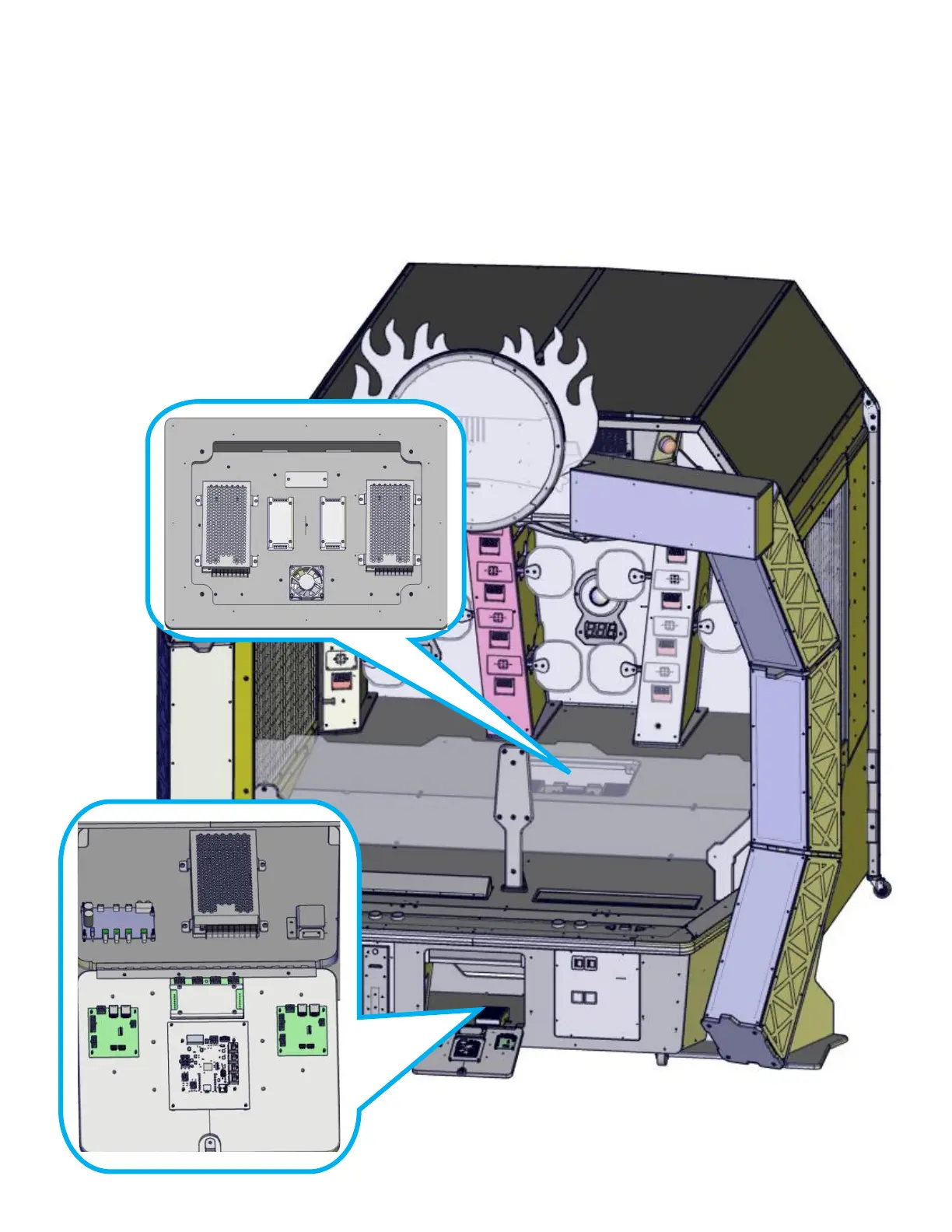

Located at the front is a center access panel. It contains the operator control panel boards, amplifier
for volume, Fuse board, one DC power supply, and AC power control. Located in the middle of the
playfield is another access hatch. In this area you will find two more DC power supplies and two
more fuse boards. A fan pulls any heat out of this chamber.
DB3275x
DB3275x
wh2134dbx
e02010X
fe2006
GF2010
GF2010 GF2010
E02010X
